Component And Components Location: Components

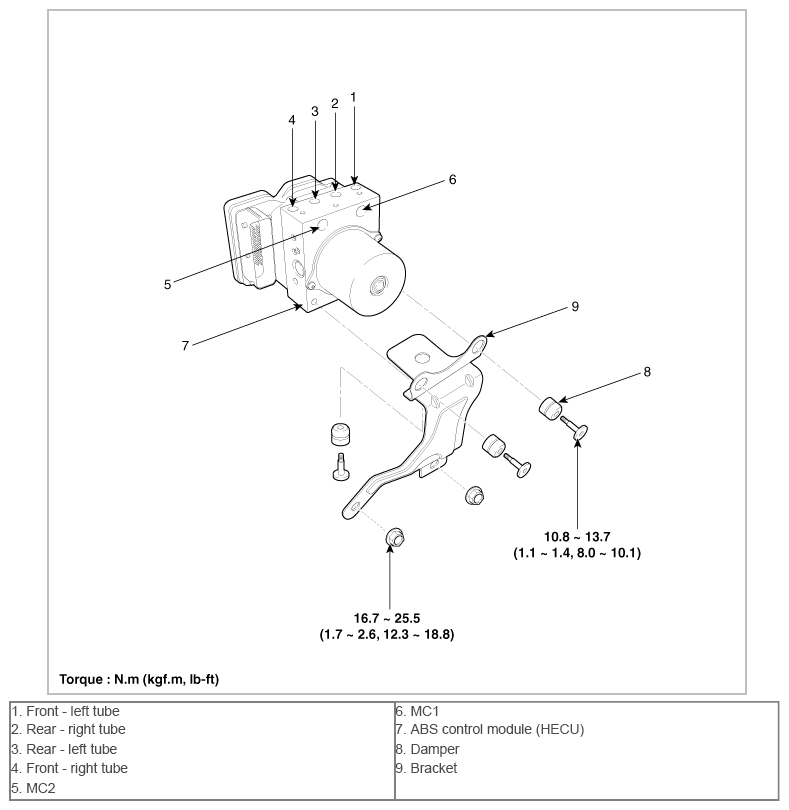

Fig 1: ESC Control Module Components With Torque Specification
G10361752Courtesy of HYUNDAI MOTOR AMERICA
