Home › Hyundai › 2015 › Accent GLS, Automatic Trans › Repair and Diagnosis › Engine Mechanical › Engine Lubrication System › Oil Pump › Components and Components Location › Components

Components and Components Location: Components

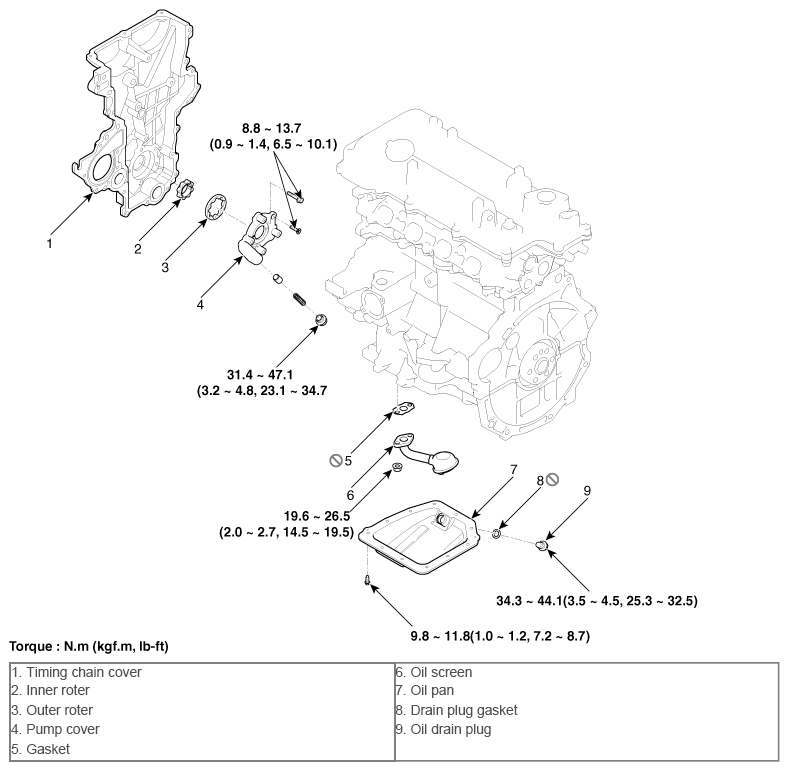

Fig 1: Oil Pump Component Locations With Torque Specifications
G10362184Courtesy of HYUNDAI MOTOR AMERICA
