Engine Control System
›
Components and Components Location
›
Components Location
Components Location

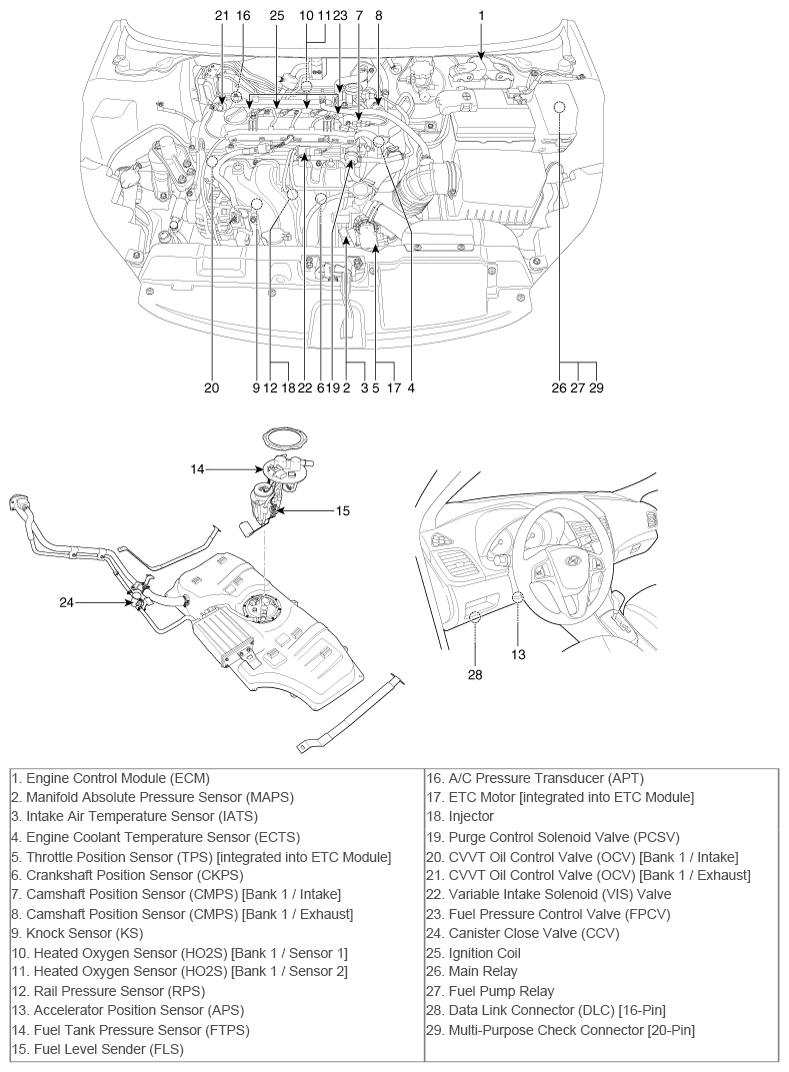

Fig 1: Engine Compartment Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

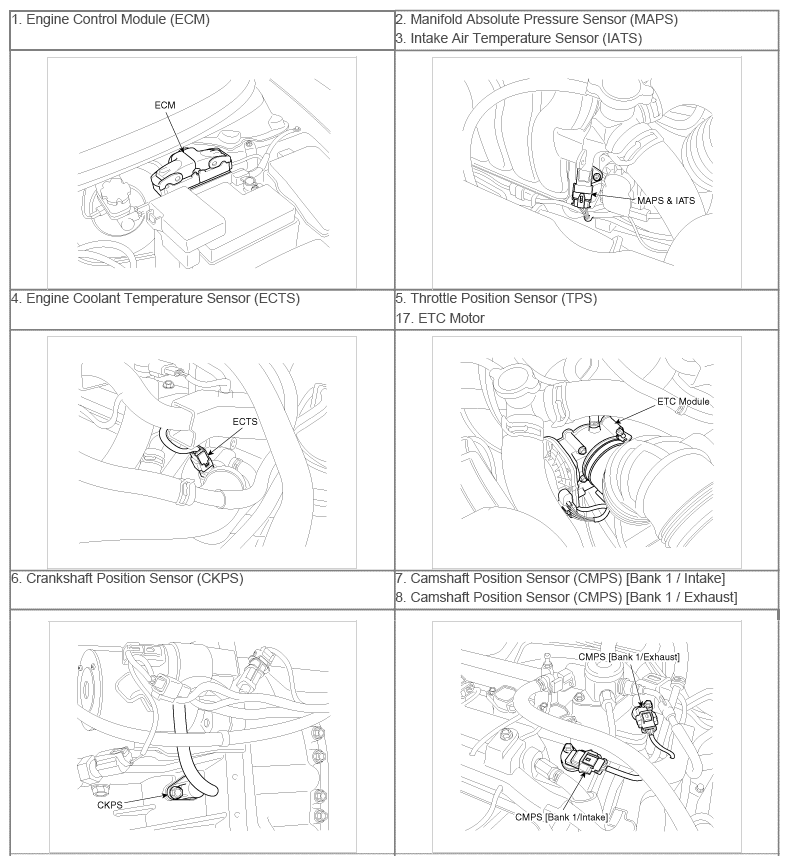

Fig 2: Engine Compartment Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

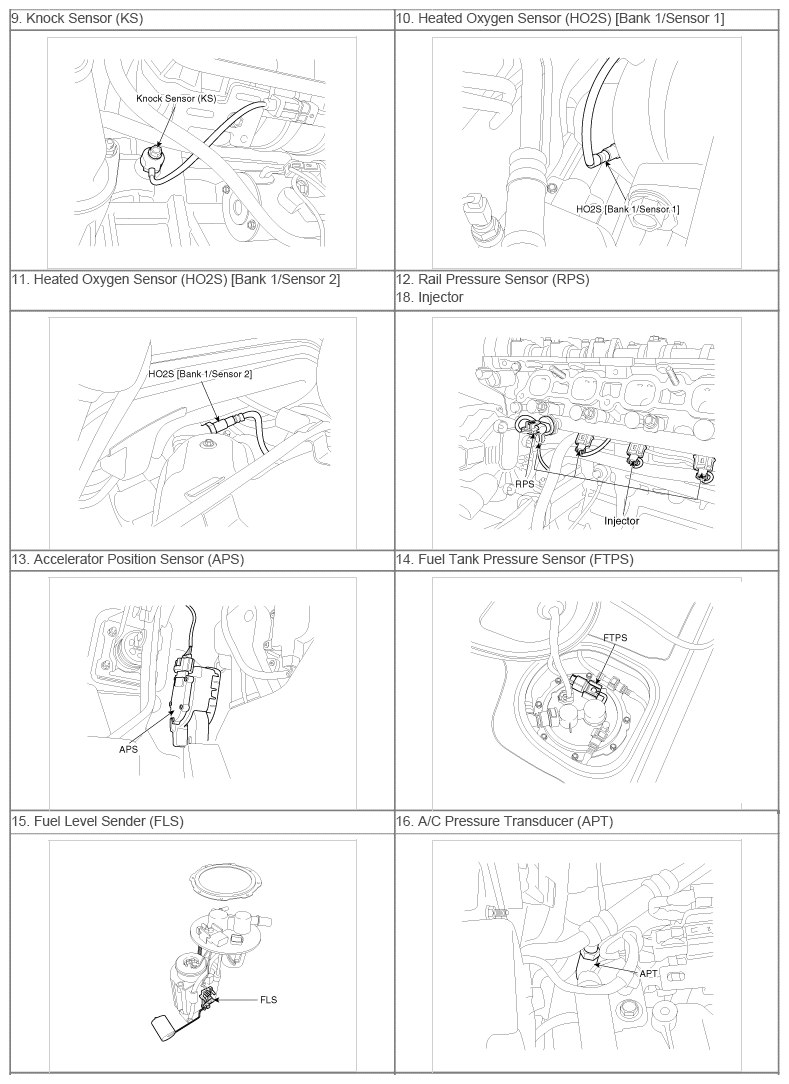

Fig 3: Engine Compartment Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

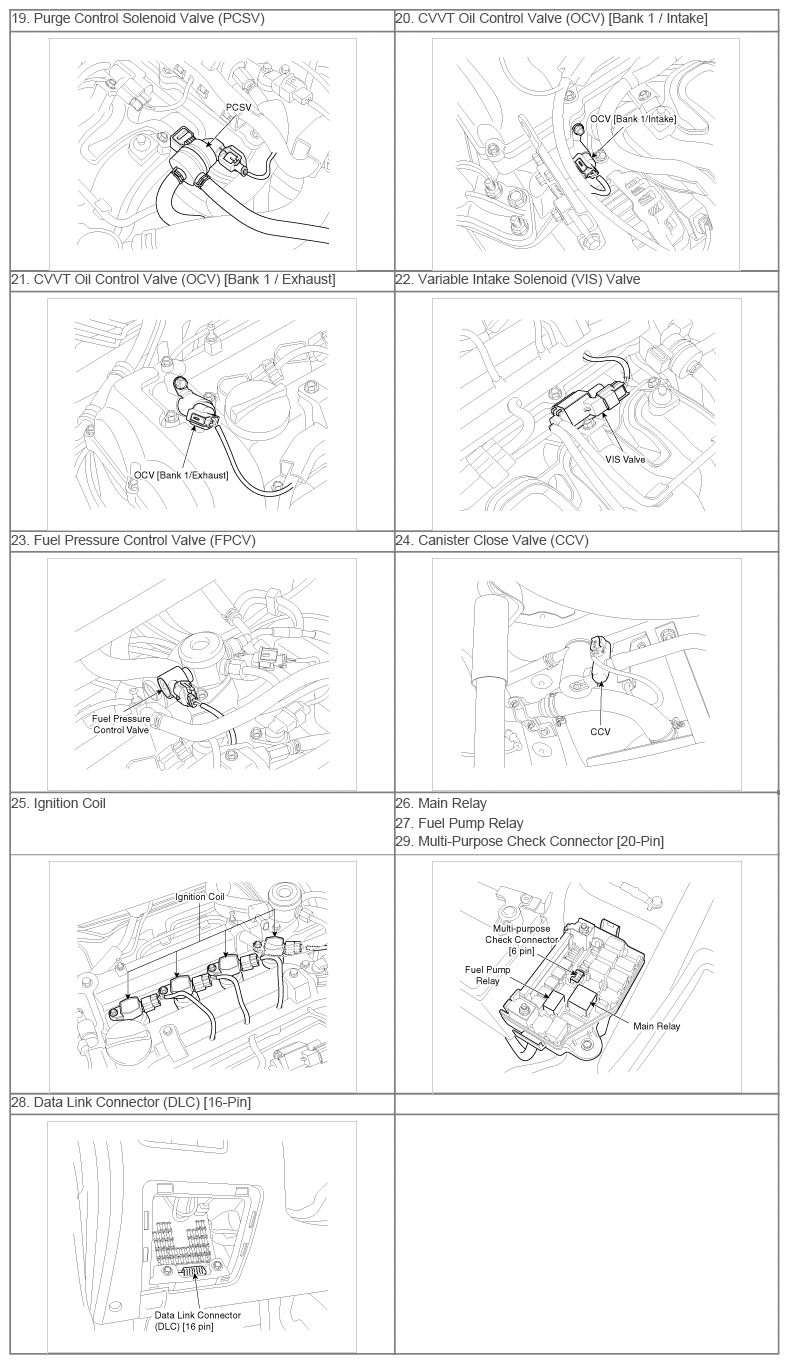

Fig 4: Engine Compartment Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
