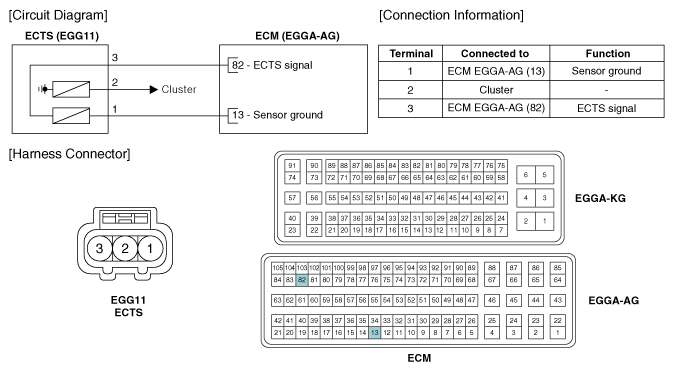

Home › Hyundai › 2015 › Accent GLS, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram › (A/T)
