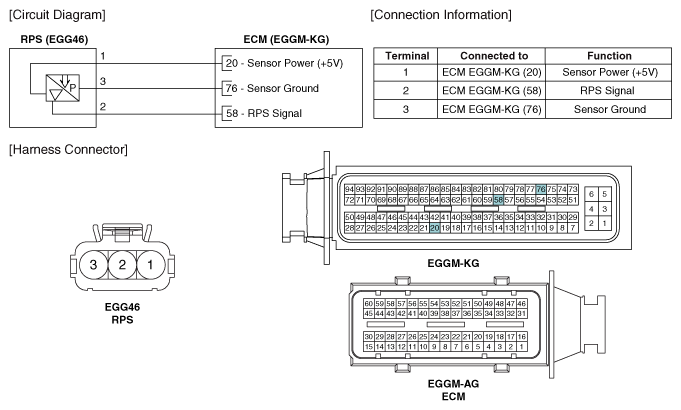

Home › Hyundai › 2015 › Accent GLS, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Rail Pressure Sensor (RPS) › Schematic Diagrams › Circuit Diagram › (M/T)
