Components and Components Location: Components

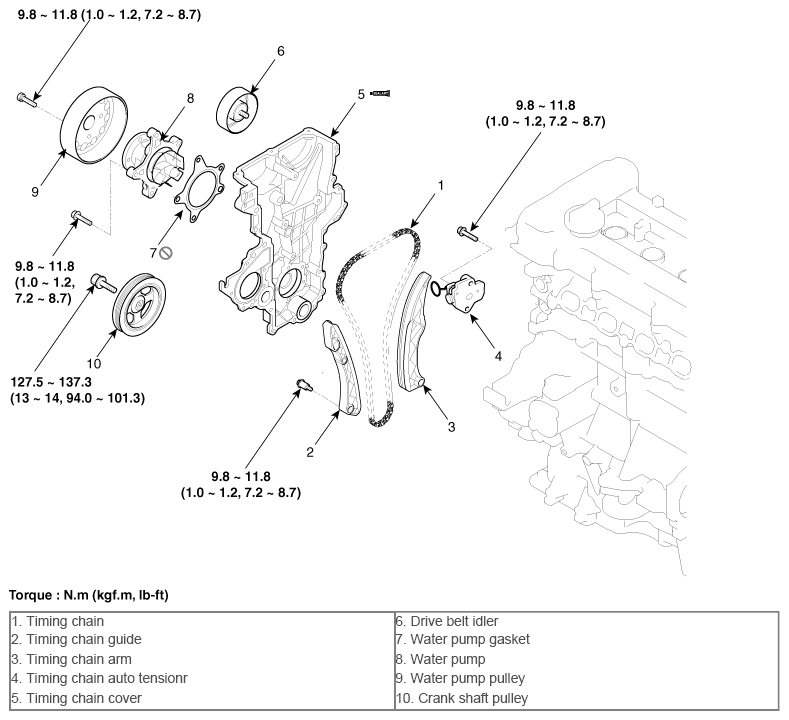

Fig 1: Timing Chain Component With Torque Specifications
G10361950Courtesy of HYUNDAI MOTOR AMERICA
