Repair Procedures: Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the trunk trim.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.

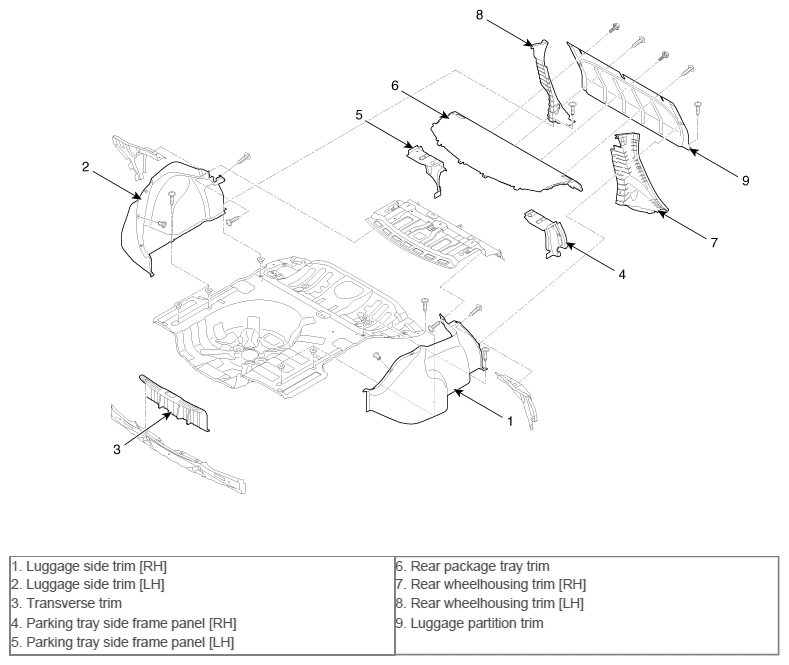

    Fig 1: Trunk Trim Components
    G10363313Courtesy of HYUNDAI MOTOR AMERICA
