Components and Components Location: Components

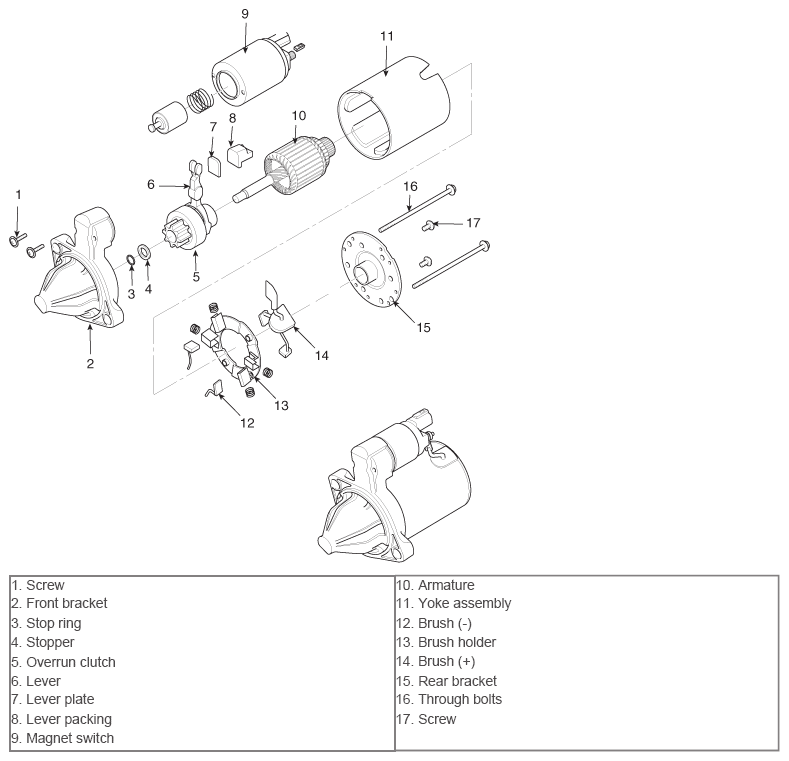

Fig 1: Starter Components
G10362314Courtesy of HYUNDAI MOTOR AMERICA
