Components and Components Location: Components

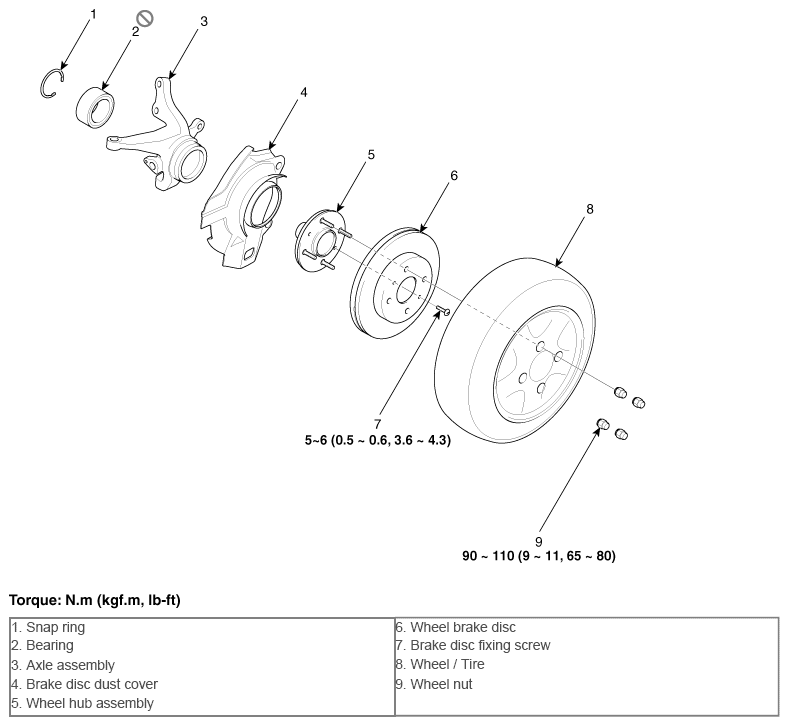

Fig 1: Front Hub Knuckle Components With Torque Specifications
G10362766Courtesy of HYUNDAI MOTOR AMERICA
