Hyundai
›
2015
›
Accent Sport, Automatic Trans
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System
›
Output Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

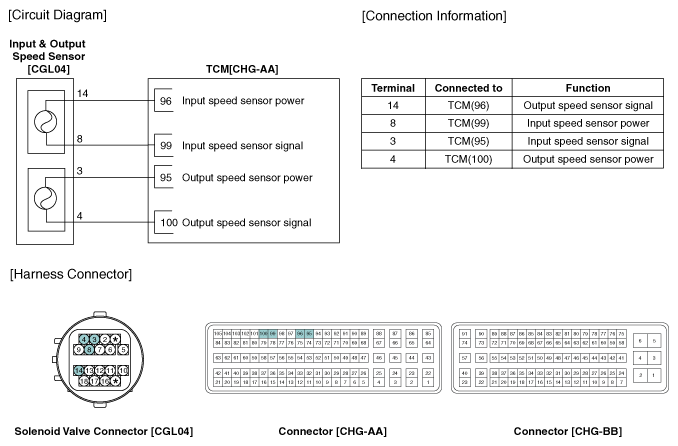

Fig 1: Input And Output Speed Sensor Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
