Transmitter Code Registration (Using GDS)

1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
   Fig 1: Data Link Connector

   Courtesy of HYUNDAI MOTOR AMERICA
2. Select the vehicle model and then do "CODE SAVING"

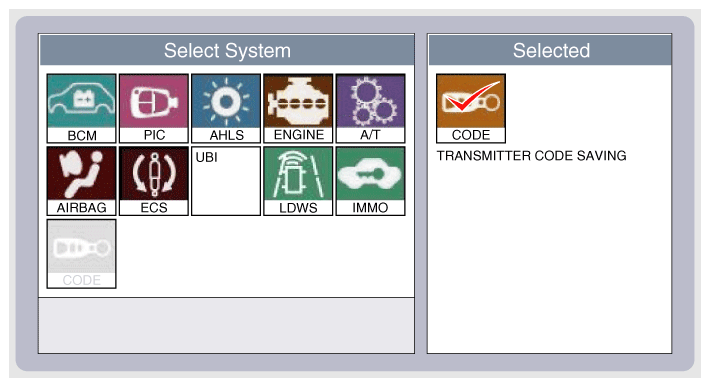

   Fig 2: Display - Code Saving Screen

   Courtesy of HYUNDAI MOTOR AMERICA
3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as in illustration below.

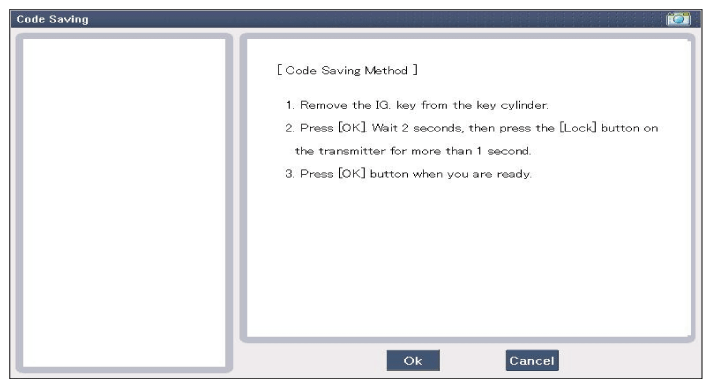

   Fig 3: Display - Code Saving Method Screen

   Courtesy of HYUNDAI MOTOR AMERICA
4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

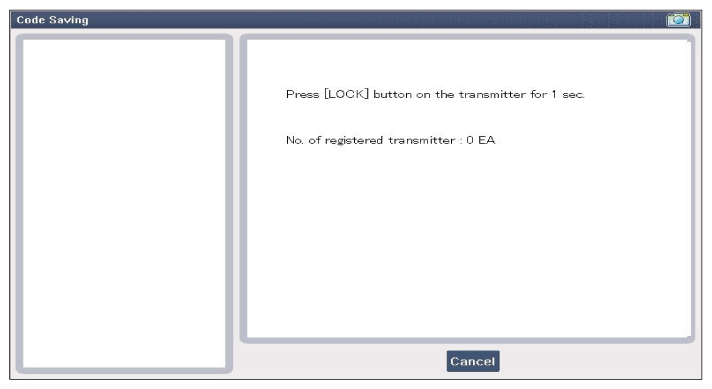

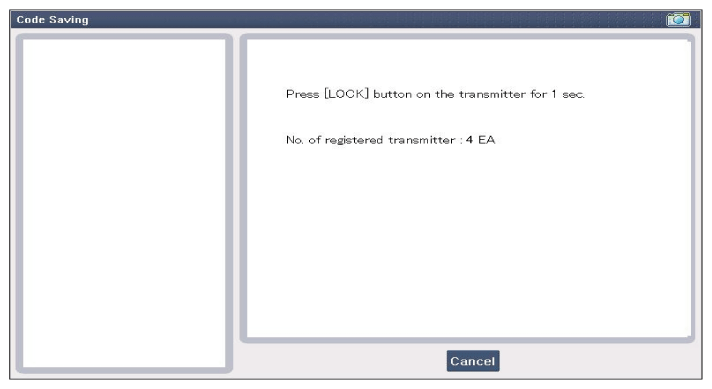

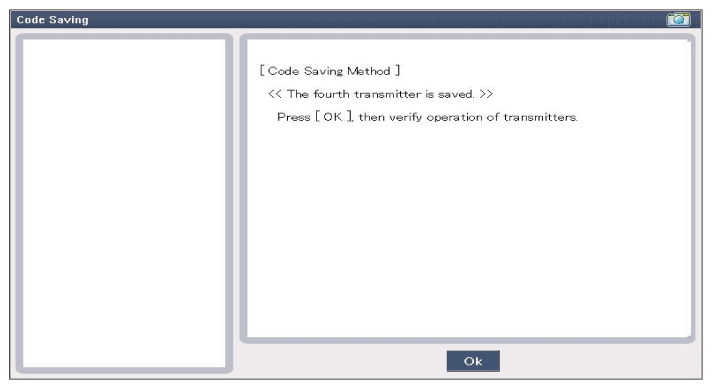

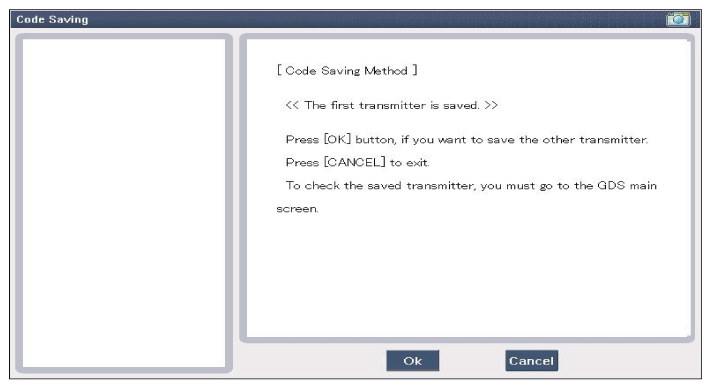

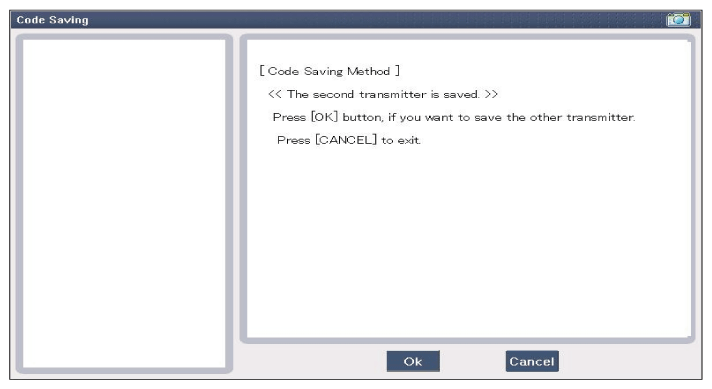

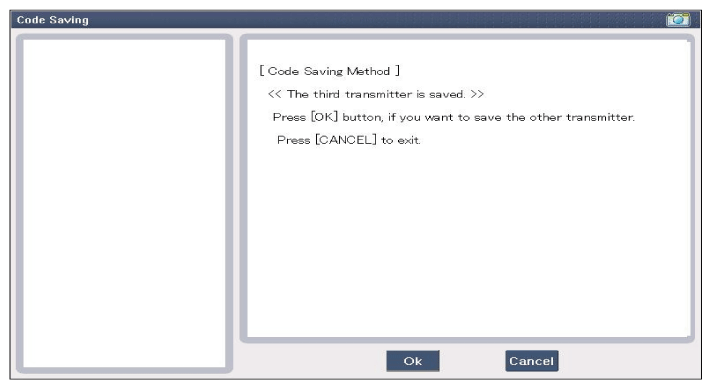

Fig 4: Display - Code Saving Method Screen (1 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Display - Code Saving Method Screen (2 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Display - Code Saving Method Screen (3 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Display - Code Saving Method Screen (4 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Display - Code Saving Method Screen (5 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Code Saving Method Screen (6 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Display - Code Saving Method Screen (7 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Display - Code Saving Method Screen (8 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Display - Code Saving Method Screen (9 Of 9)

Courtesy of HYUNDAI MOTOR AMERICA
