Component Inspection

■ CLU Variant Coding Method and Procedure (Off-line type on GDS)

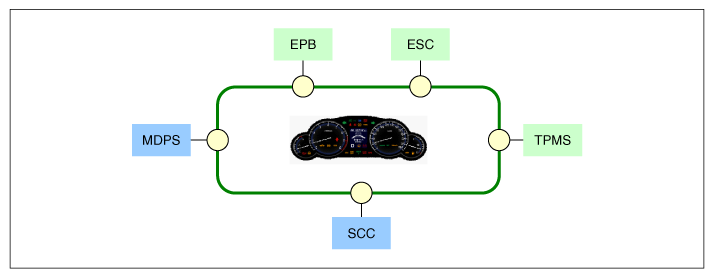

Fig 1: CLU Variant Coding Method

Courtesy of HYUNDAI MOTOR AMERICA

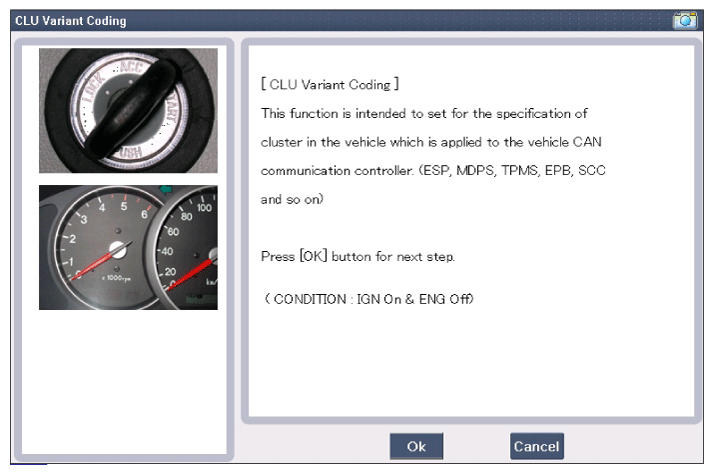

Fig 2: Screen Display - CLU Variant Coding Proceeding Screen-1

Courtesy of HYUNDAI MOTOR AMERICA

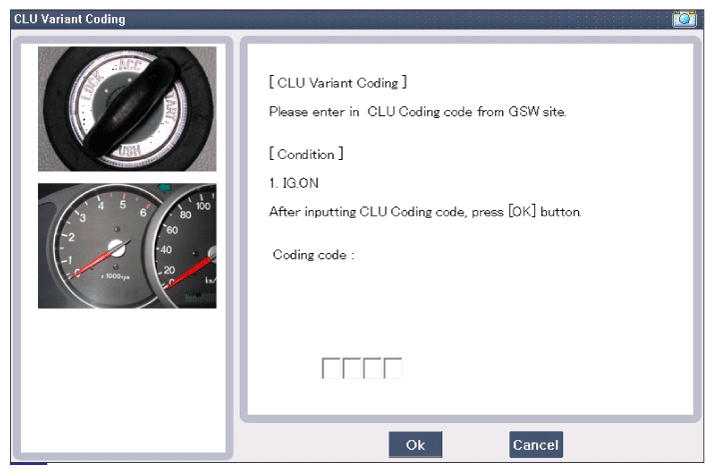

Fig 3: Screen Display - CLU Variant Coding Proceeding Screen-2

Courtesy of HYUNDAI MOTOR AMERICA

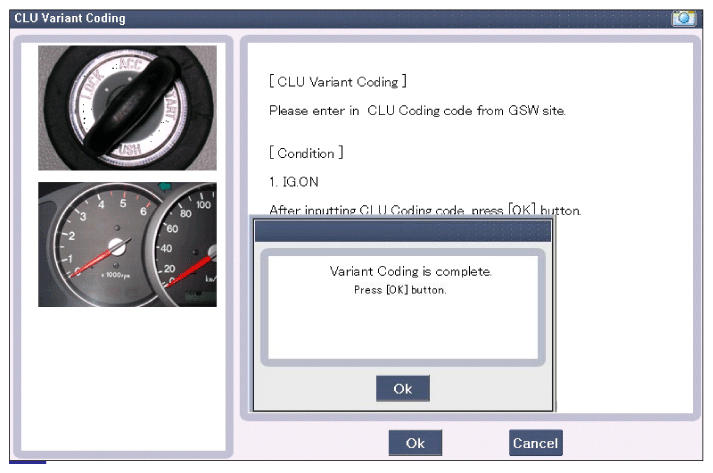

Fig 4: Screen Display - CLU Variant Coding Proceeding Screen-3

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Screen Display - CLU Variant Coding Completed

Courtesy of HYUNDAI MOTOR AMERICA

■ CLU Variant Coding Method and Procedure (On-line type on GDS))

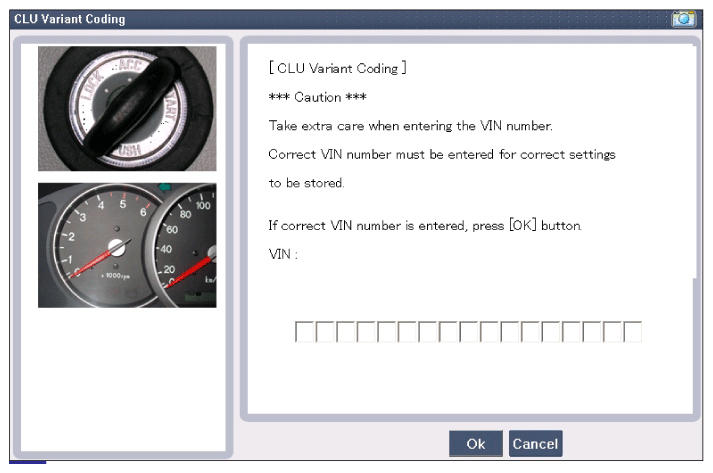

Fig 6: Screen Display - CLU Variant Coding Proceeding Screen-1

Courtesy of HYUNDAI MOTOR AMERICA

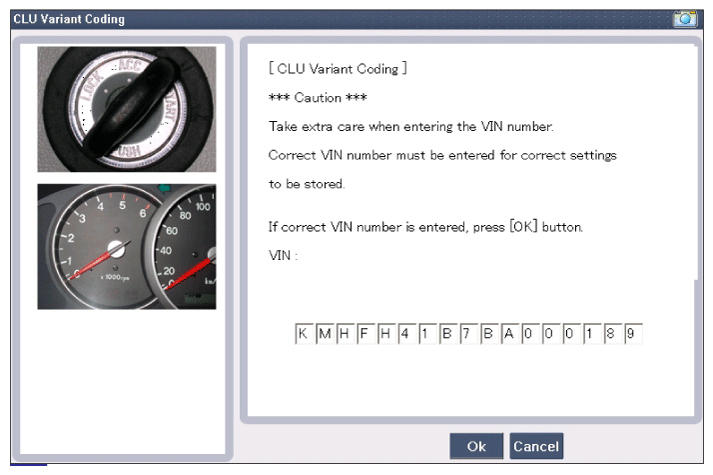

Fig 7: Screen Display - CLU Variant Coding Proceeding Screen-2

Courtesy of HYUNDAI MOTOR AMERICA

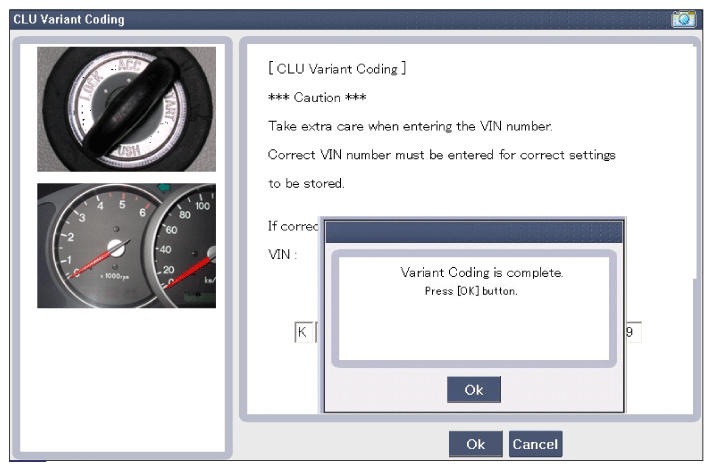

Fig 8: Screen Display - CLU Variant Coding Completed

Courtesy of HYUNDAI MOTOR AMERICA
