Circuit Diagram

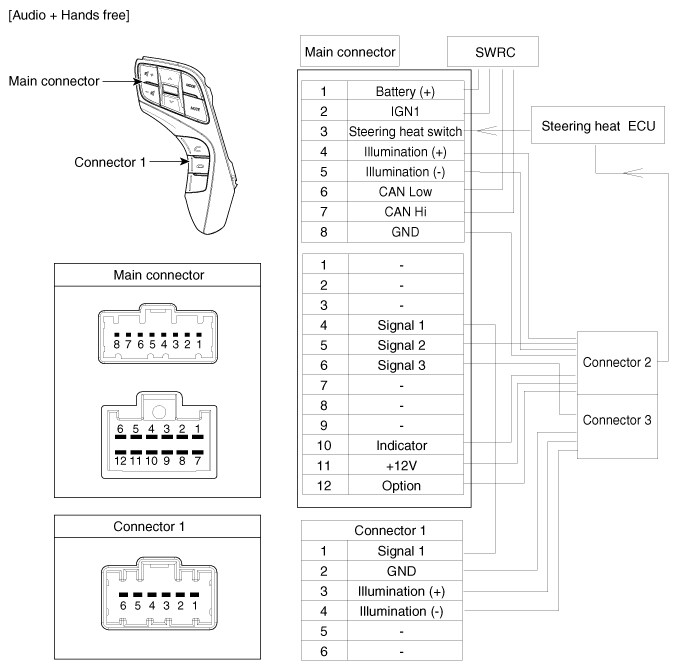

Fig 1: SWRC Schematic Diagrams (1 Of 2)
G10368750Courtesy of HYUNDAI MOTOR AMERICA

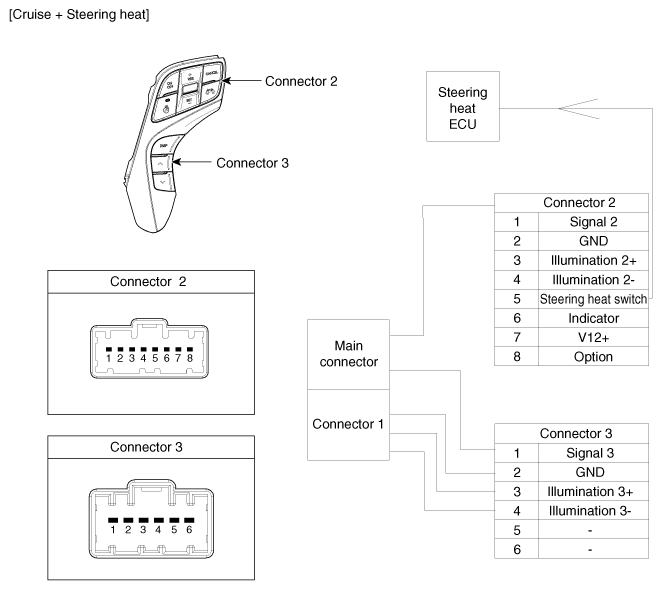

Fig 2: SWRC Schematic Diagrams (2 Of 2)
G10368751Courtesy of HYUNDAI MOTOR AMERICA
