Front Body A

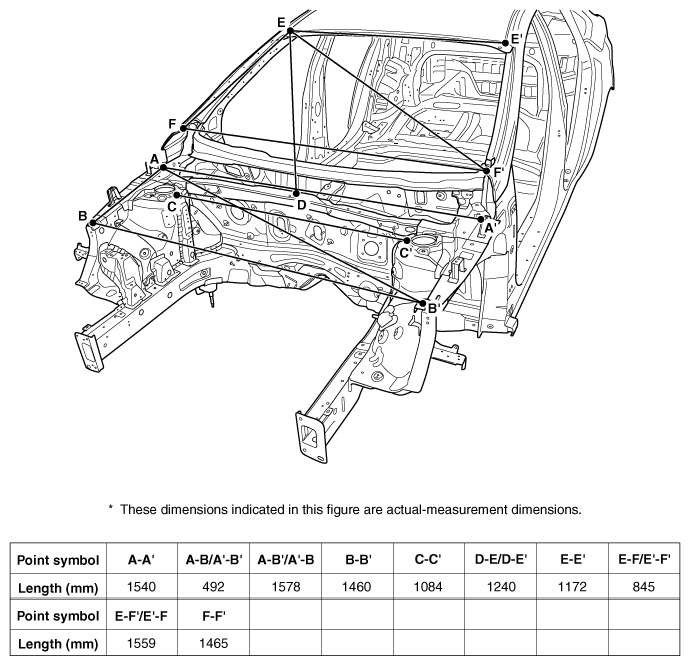

Fig 1: Front Body A Dimensions
G10368275Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Front Pillar Outer Corner And Roof Panel Front Corner Dimensions
G10368276Courtesy of HYUNDAI MOTOR AMERICA
