Front Body
›
Front Body B
Front Body B

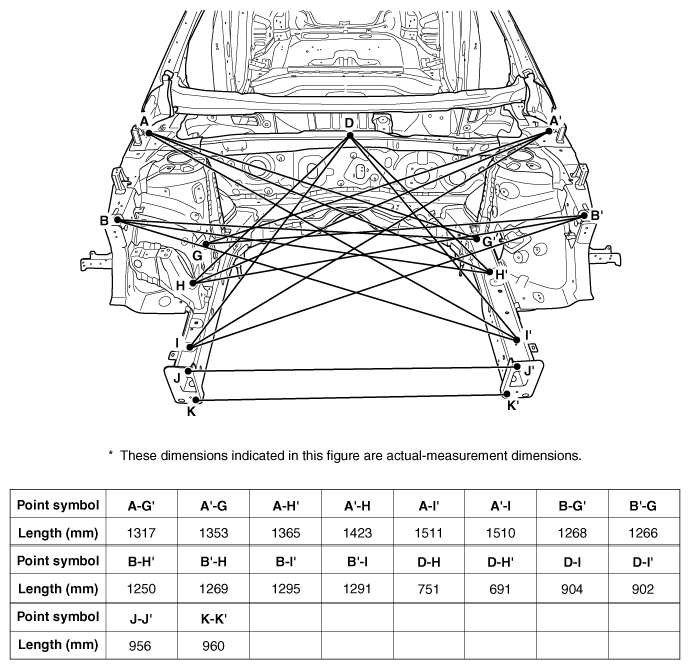

Fig 1: Front Body B Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

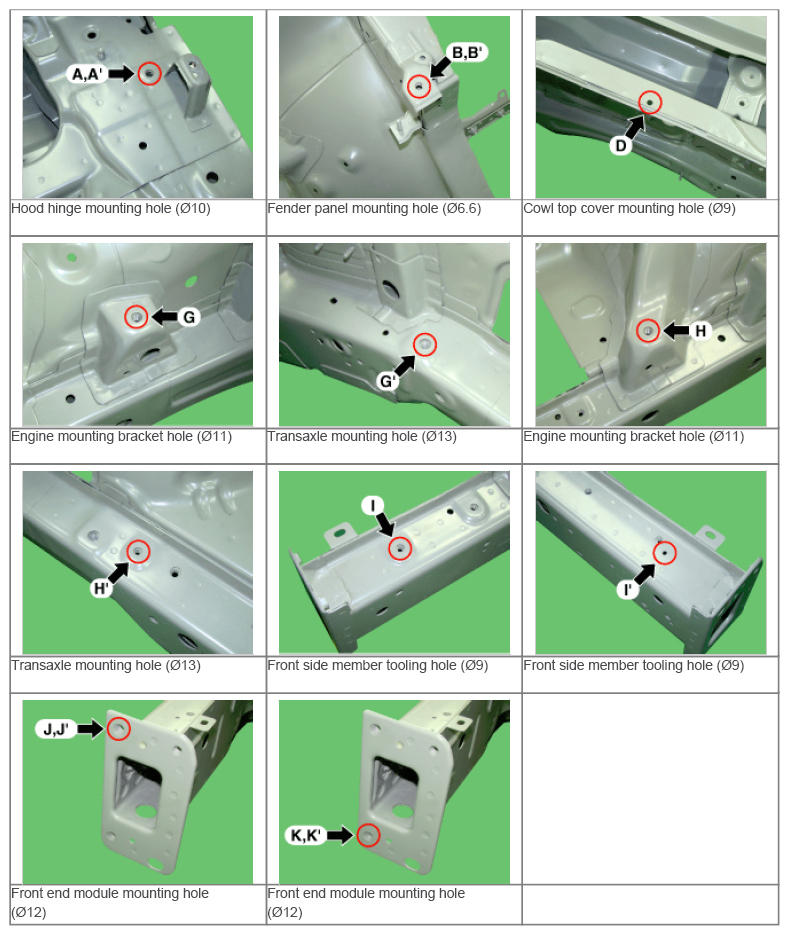

Fig 2: Transaxle Mounting Hole And Engine Mounting Bracket Hole Dimensions
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
