Front Body C

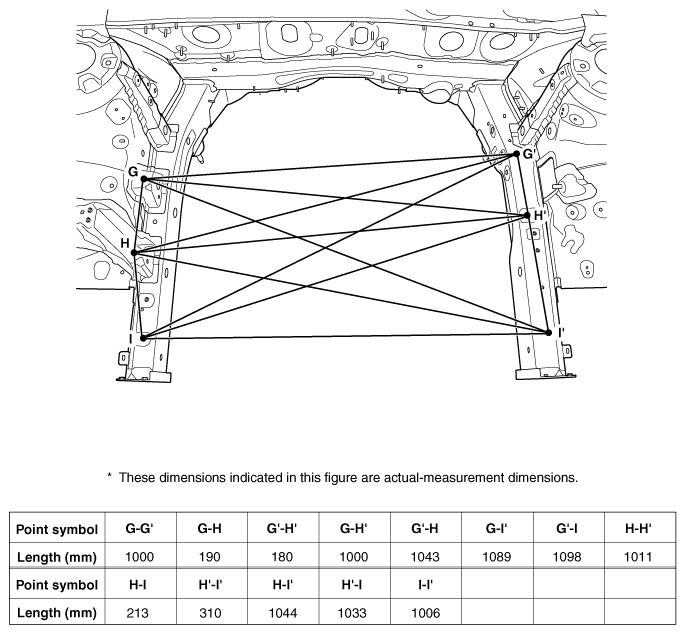

Fig 1: Front Body C Dimensions
G10368279Courtesy of HYUNDAI MOTOR AMERICA

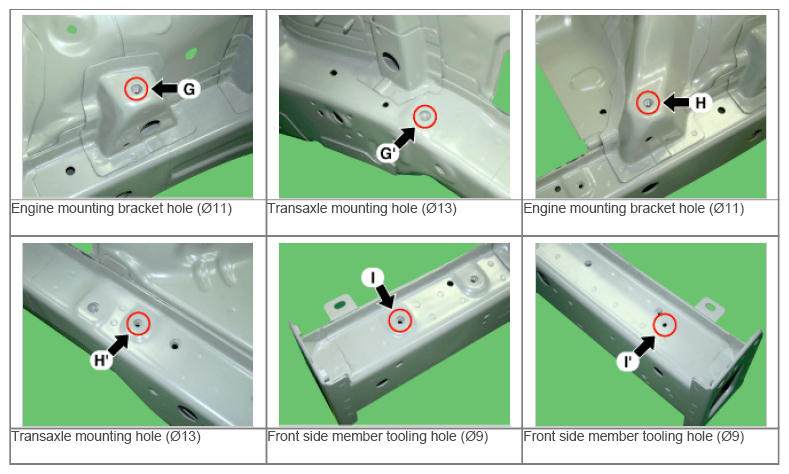

Fig 2: Transaxle Mounting And Engine Mounting Bracket Holes
G10368280Courtesy of HYUNDAI MOTOR AMERICA
