Interior B

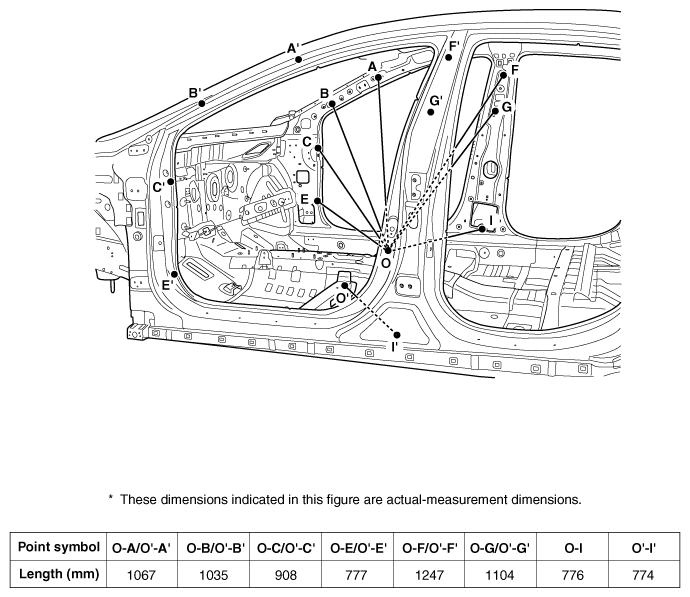

Fig 1: Interior B Dimensions
G10368287Courtesy of HYUNDAI MOTOR AMERICA

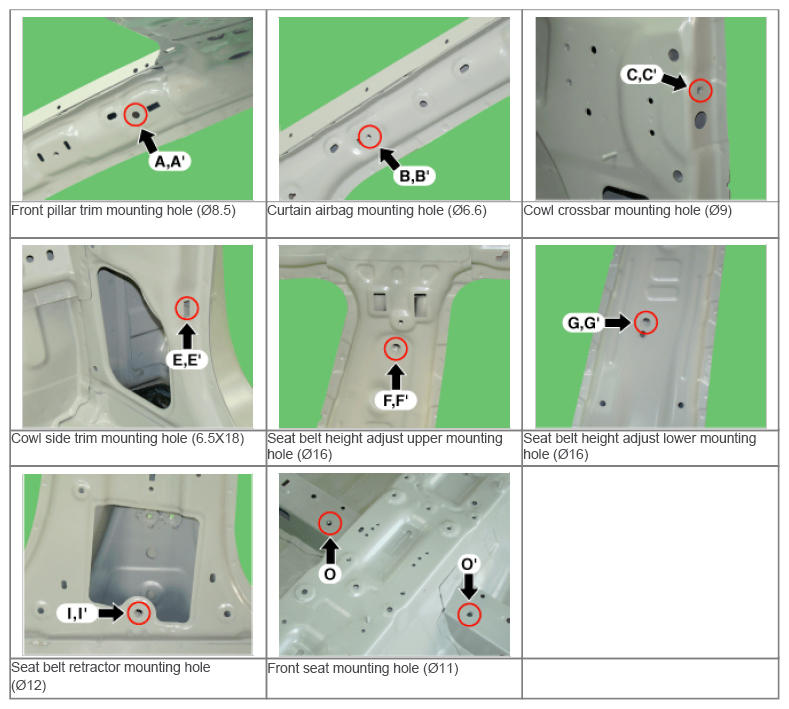

Fig 2: Cowl Crossbar And Front Pillar Trim Mounting Holes
G10368288Courtesy of HYUNDAI MOTOR AMERICA
