Smart Junction Block Connector End View (I/P-C)

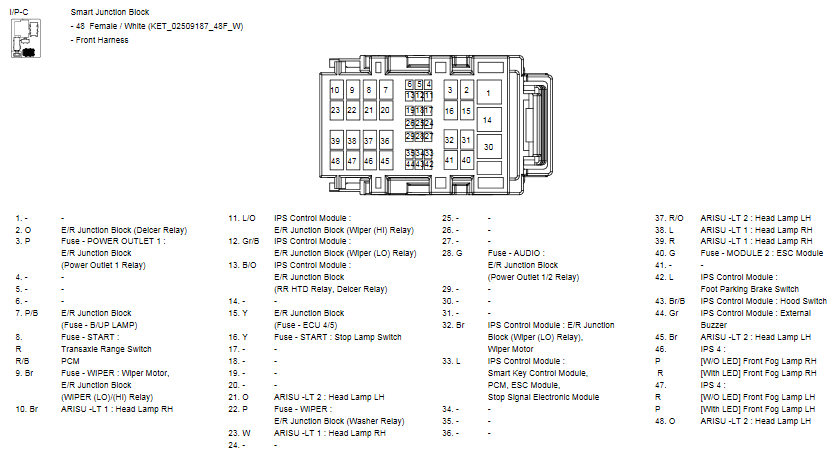

Fig 1: Smart Junction Block Connector End View (I/P-C)
G10776459Courtesy of HYUNDAI MOTOR AMERICA
