Smart Junction Block Connector End View (I/P-D)

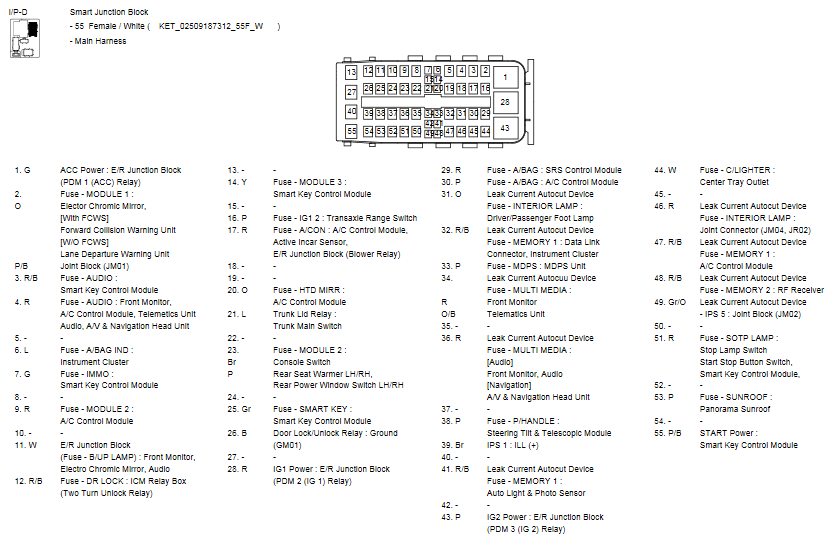

Fig 1: Smart Junction Block Connector End View (I/P-D)
G10776460Courtesy of HYUNDAI MOTOR AMERICA
