Smart Junction Block Connector End View (I/P-F)

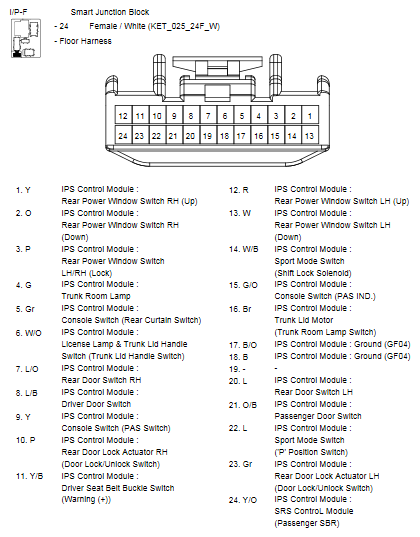

Fig 1: Smart Junction Block Connector End View (I/P-F)
G10776462Courtesy of HYUNDAI MOTOR AMERICA
