Home › Hyundai › 2015 › Azera Base › Repair and Diagnosis › Engine Mechanical › Mechanical › Cylinder Head Assembly › CVVT Assembly › Components And Components Location › Components

Components And Components Location: Components

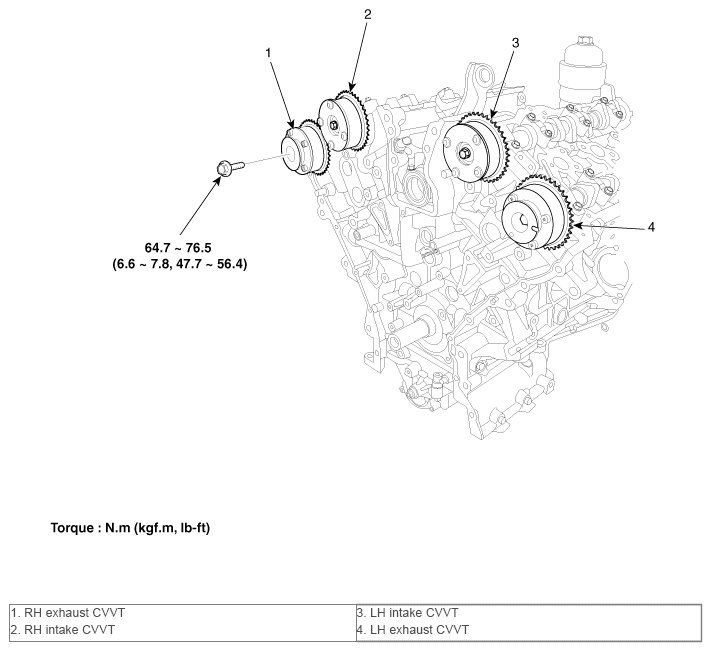

Fig 1: CVVT Assembly Components With Torque Specification
G10366939Courtesy of HYUNDAI MOTOR AMERICA
