Components and Components Location: Components

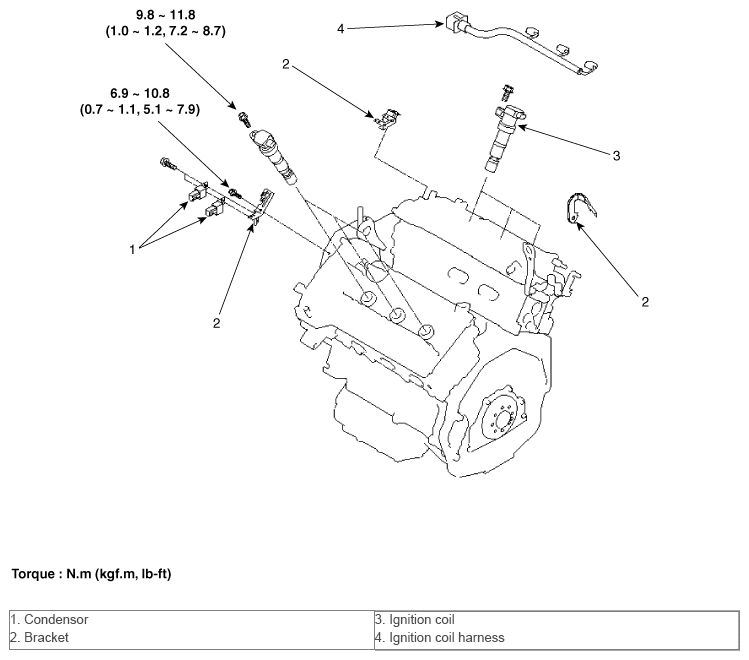

Fig 1: Ignition Coils Components With Torque Specifications
G10367216Courtesy of HYUNDAI MOTOR AMERICA
