Components and Components Location: Components

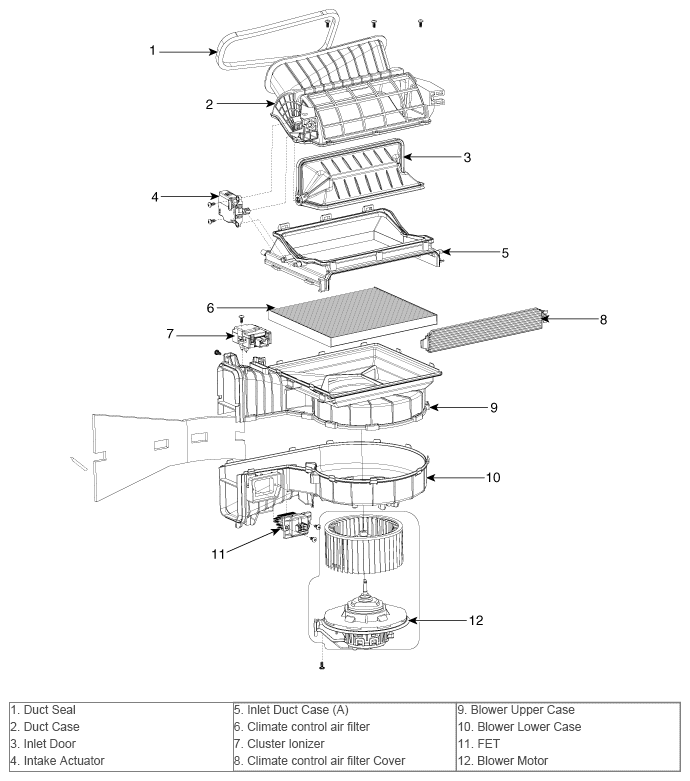

Fig 1: Blower Unit Components
G10369858Courtesy of HYUNDAI MOTOR AMERICA
