Components and Components Location: Components

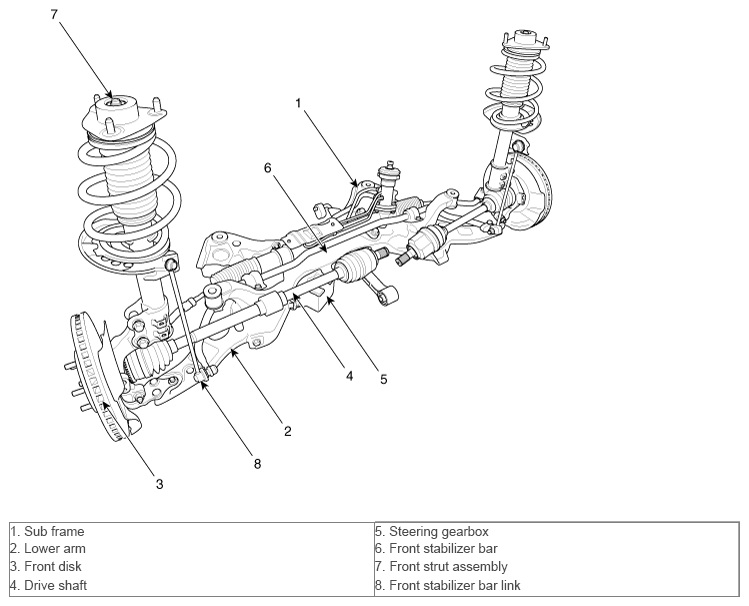

Fig 1: Front Suspension System Components
G10367833Courtesy of HYUNDAI MOTOR AMERICA
