Components And Components Location: Components

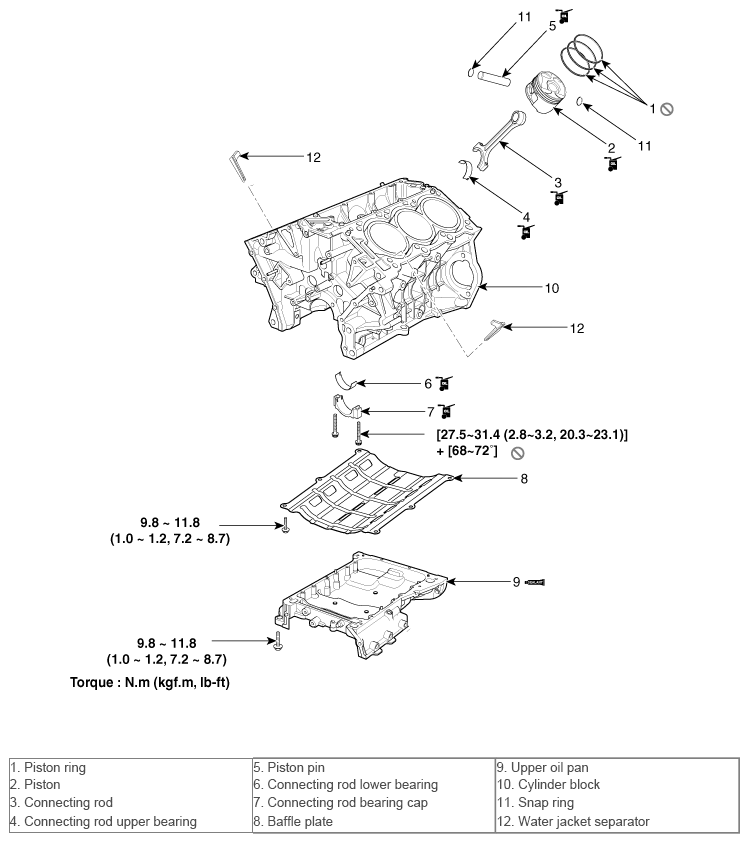

Fig 1: Cylinder Block Components With Torque Specifications (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Cylinder Block Components With Torque Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
