Components and Components Location: Components

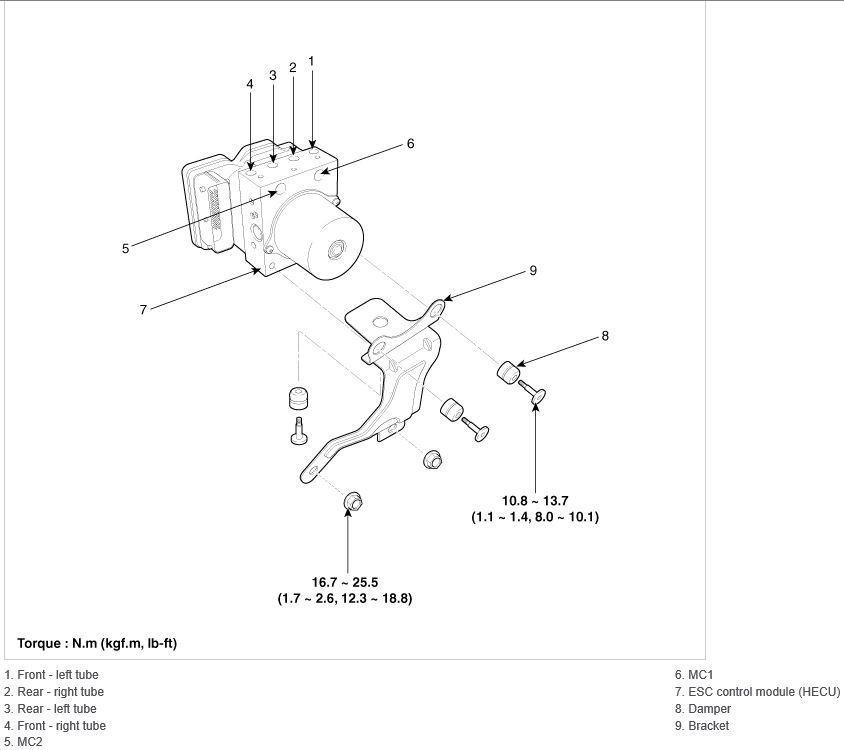

Fig 1: ESC Control Module Related Components With Torque Specification
G00564080Courtesy of HYUNDAI MOTOR AMERICA
