Circuit Diagram: [M/T]

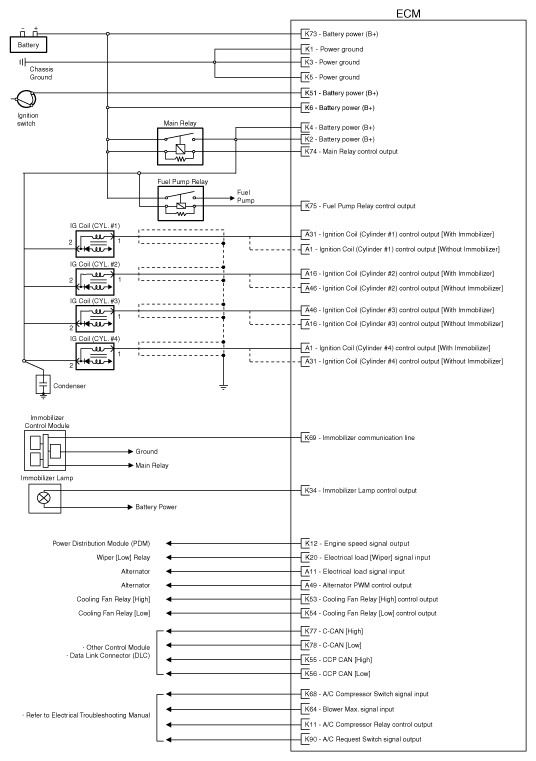

Fig 1: ECM Circuit Diagram (M/T; 1 Of 4)
G10548866Courtesy of HYUNDAI MOTOR AMERICA

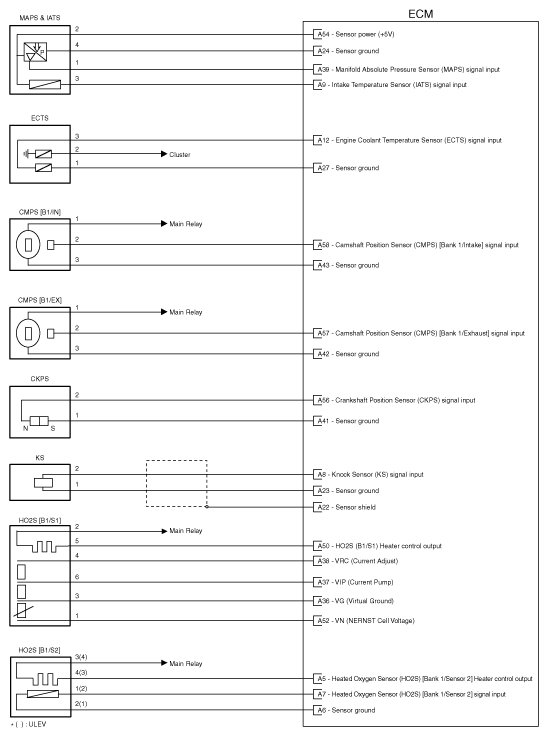

Fig 2: ECM Circuit Diagram (M/T; 2 Of 4)
G10548867Courtesy of HYUNDAI MOTOR AMERICA

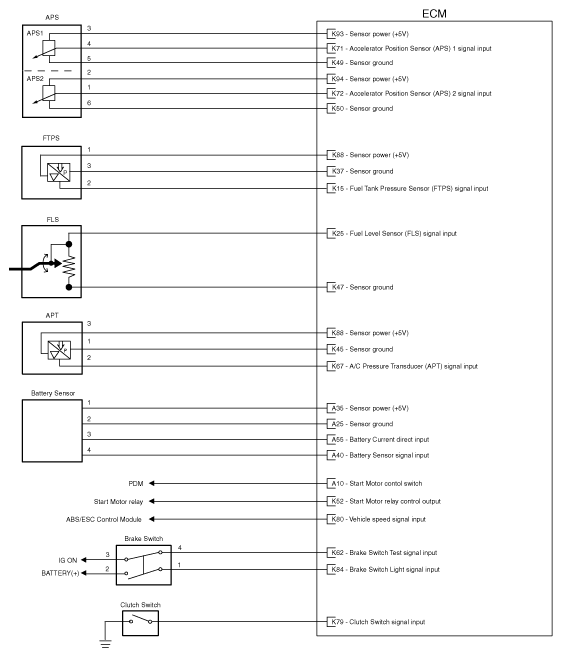

Fig 3: ECM Circuit Diagram (M/T; 3 Of 4)
G10548868Courtesy of HYUNDAI MOTOR AMERICA

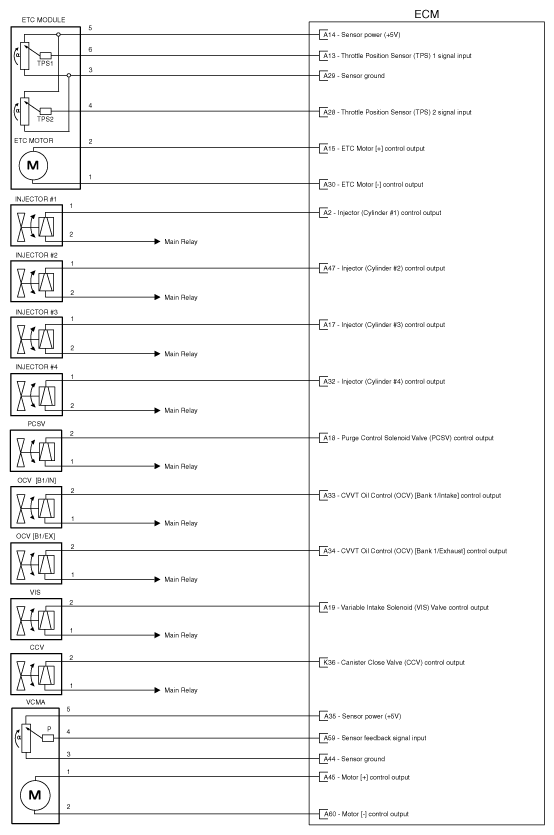

Fig 4: ECM Circuit Diagram (M/T; 4 Of 4)
G10548869Courtesy of HYUNDAI MOTOR AMERICA
