Engine Control System - 1.8L
›
Engine Control System
›
Components and Components Location
›
Components Location
Components Location

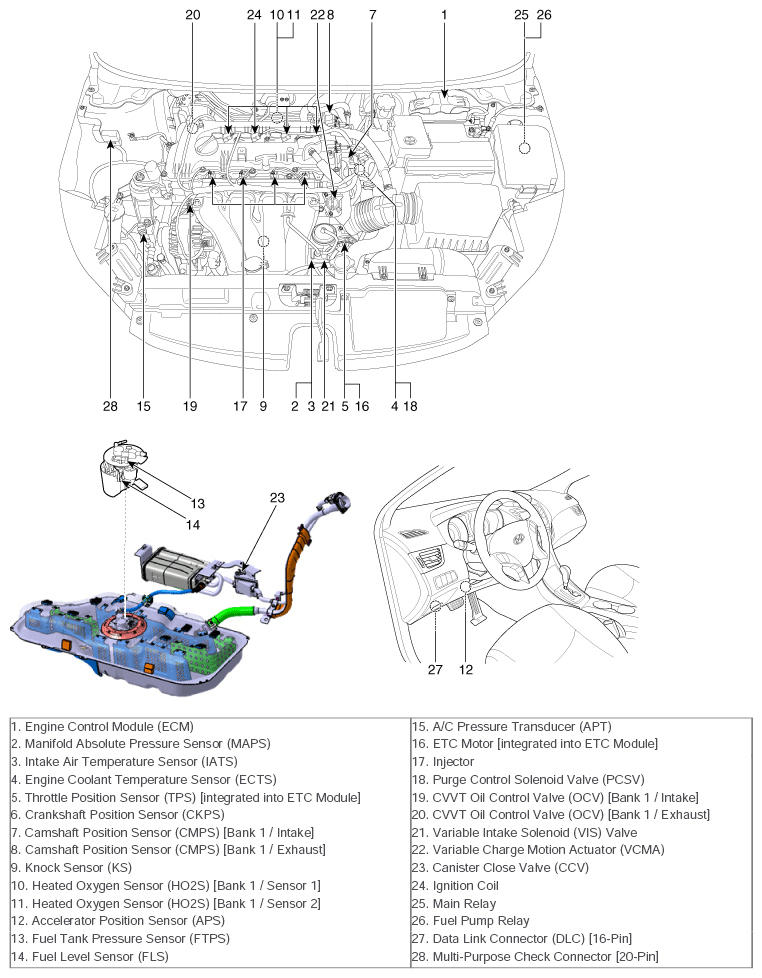

Fig 1: Engine Control System Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

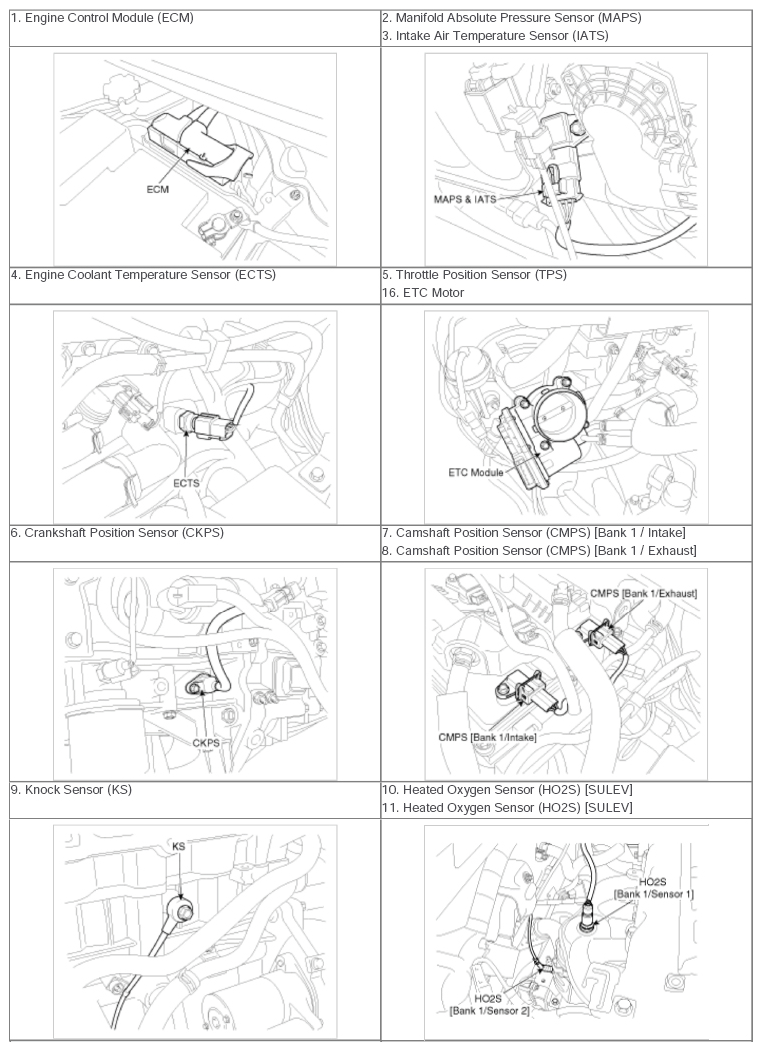

Fig 2: Engine Control System Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

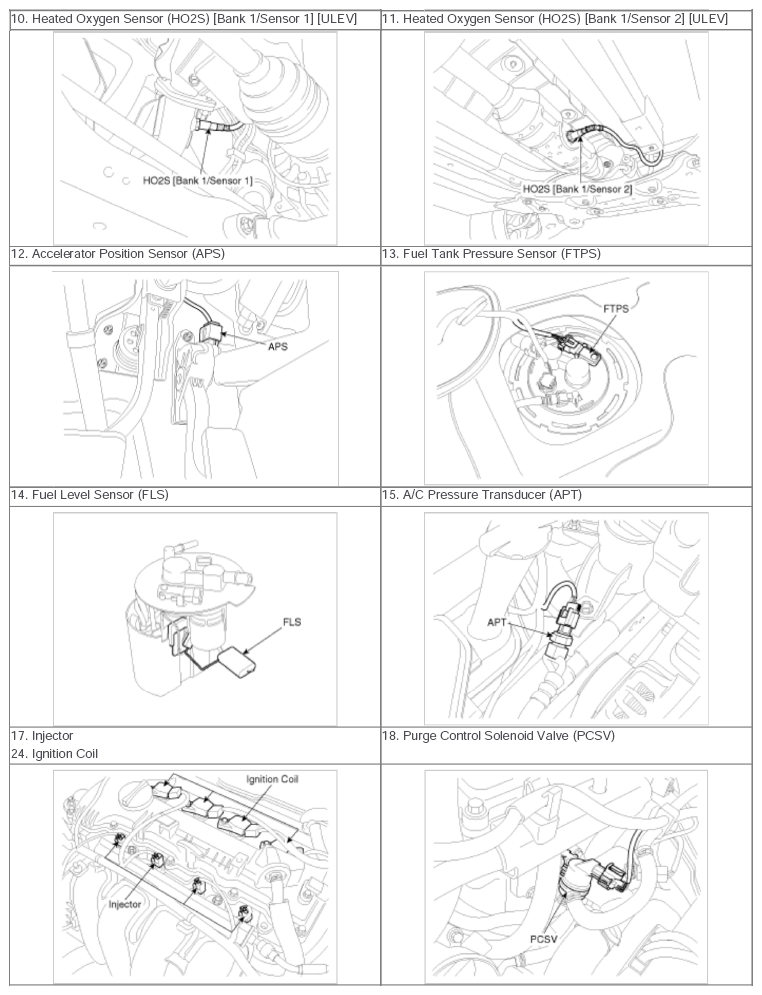

Fig 3: Engine Control System Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

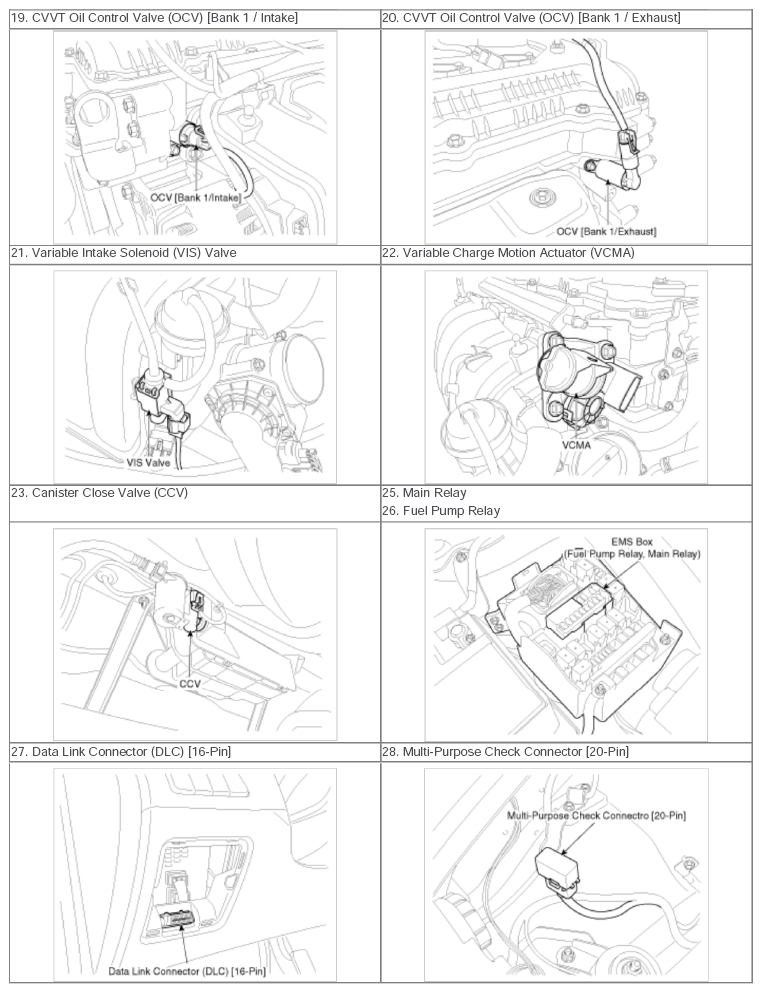

Fig 4: Engine Control System Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
