Circuit Diagram: (A/T)

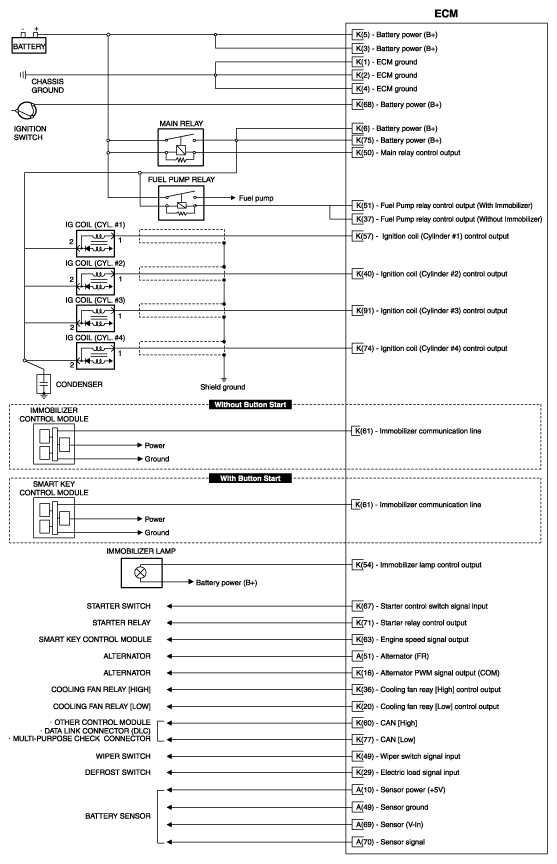

Fig 1: ECM (A/T) Circuit Diagram (1 Of 4)
G10544274Courtesy of HYUNDAI MOTOR AMERICA

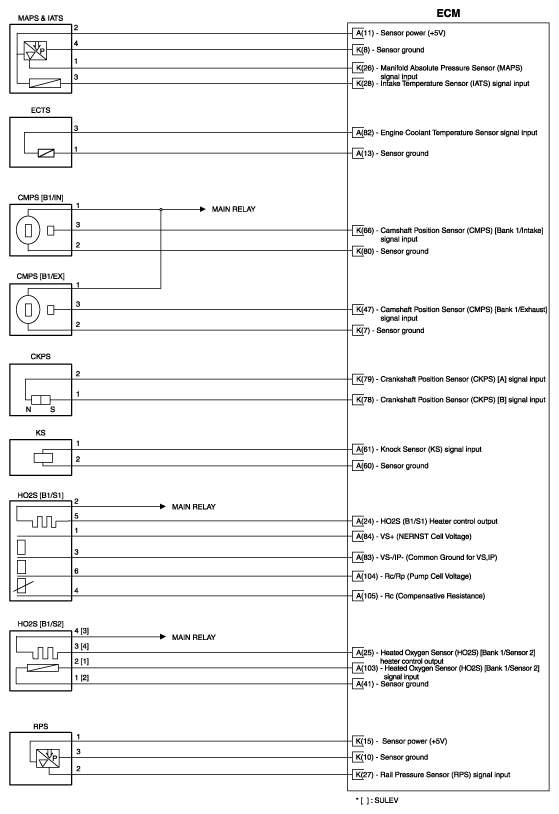

Fig 2: ECM (A/T) Circuit Diagram (2 Of 4)
G10544275Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: ECM (A/T) Circuit Diagram (3 Of 4)
G10544276Courtesy of HYUNDAI MOTOR AMERICA

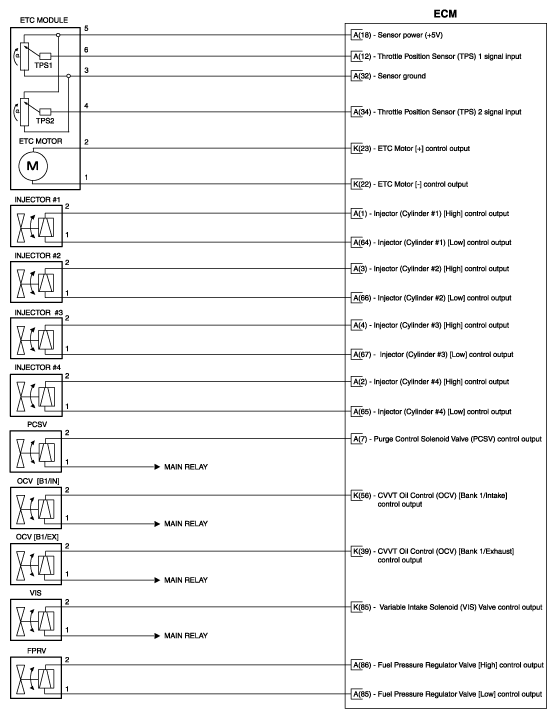

Fig 4: ECM (A/T) Circuit Diagram (4 Of 4)
G10544277Courtesy of HYUNDAI MOTOR AMERICA
