Home › Hyundai › 2015 › Elantra Coupe GLS, Standard Trans › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Control System - 2.0L › Shift Cable › Components and Components Location › Components

Components and Components Location: Components

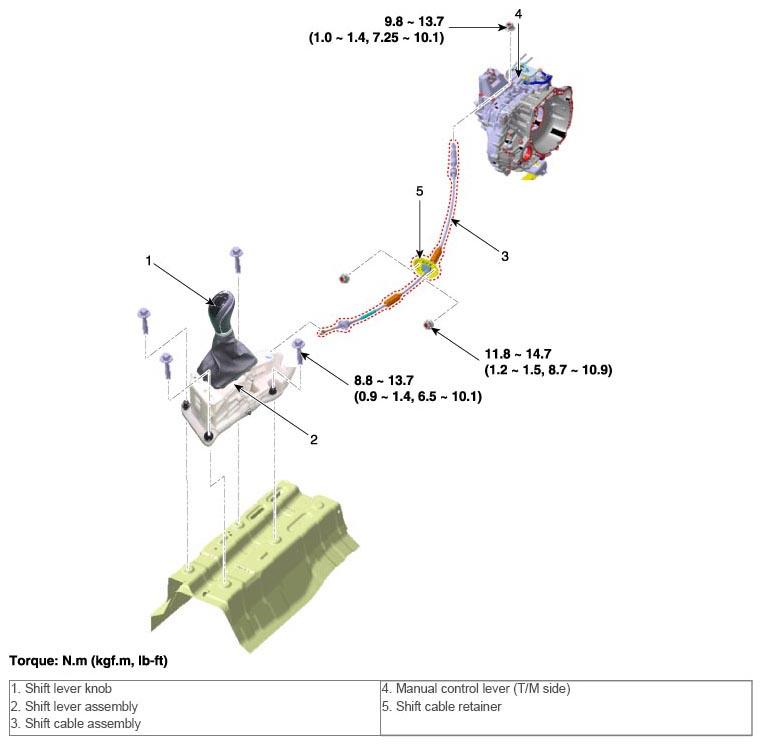

Fig 1: Shift Cable Related Components With Torque Specifications
G10544671Courtesy of HYUNDAI MOTOR AMERICA
