Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

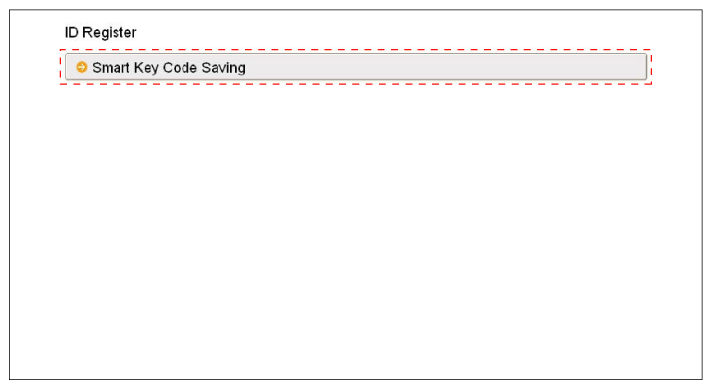

Fig 2: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be displayed in graphic.

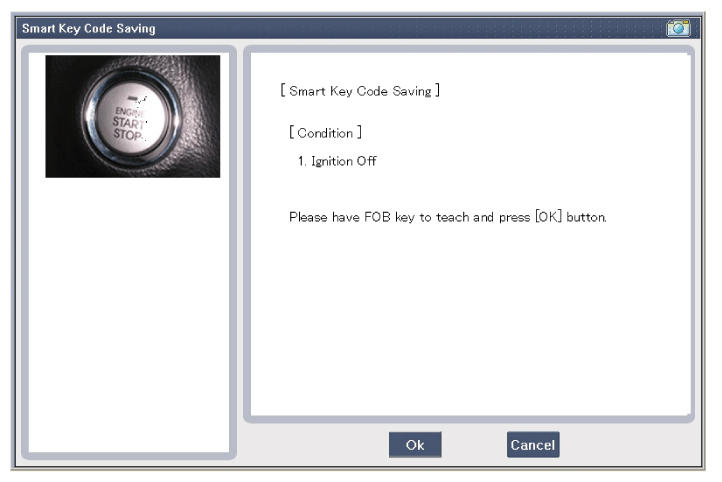

Fig 3: Display - Smart Key Code Saving Condition Screen
Courtesy of HYUNDAI MOTOR AMERICA
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin Code" for first key teaching.

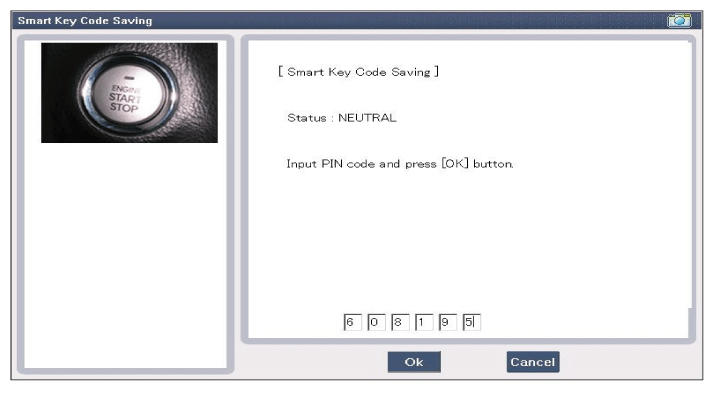

Fig 4: Display - Smart Key Code Saving Neutral Screen
Courtesy of HYUNDAI MOTOR AMERICA

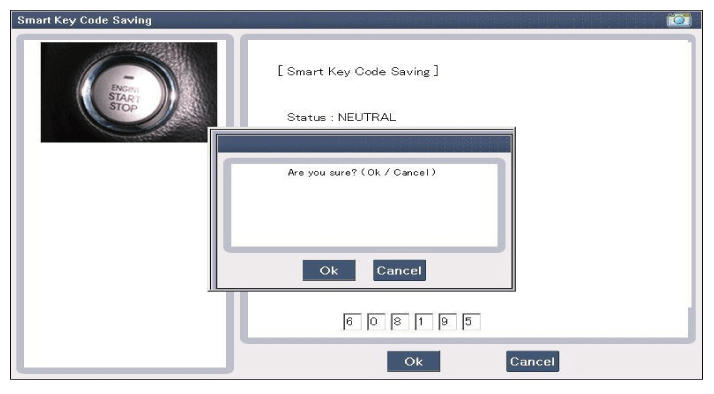

Fig 5: Display - Smart Key Code Saving Neutral Screen
Courtesy of HYUNDAI MOTOR AMERICA

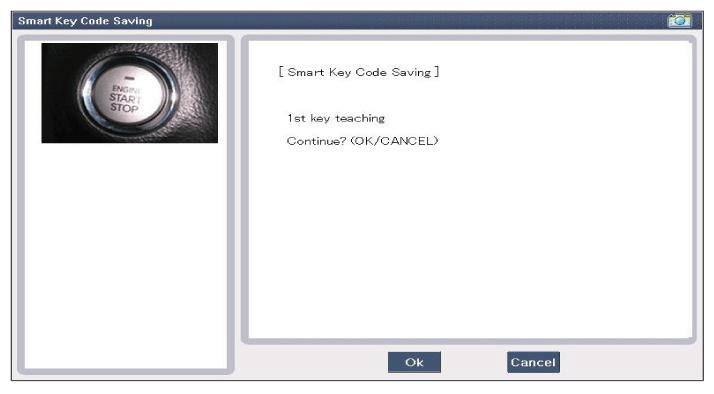

Confirm the message "First Key Teaching Completed".

Fig 6: Display - Smart Key Code Saving Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

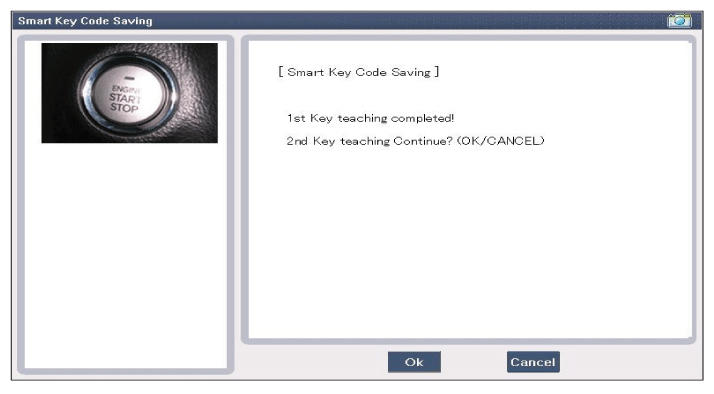

Fig 7: Display - Smart Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Input the "Pin Code" for second key teaching.

Fig 8: Display - Input Pin Code For Second Key Teaching Screen
Courtesy of HYUNDAI MOTOR AMERICA

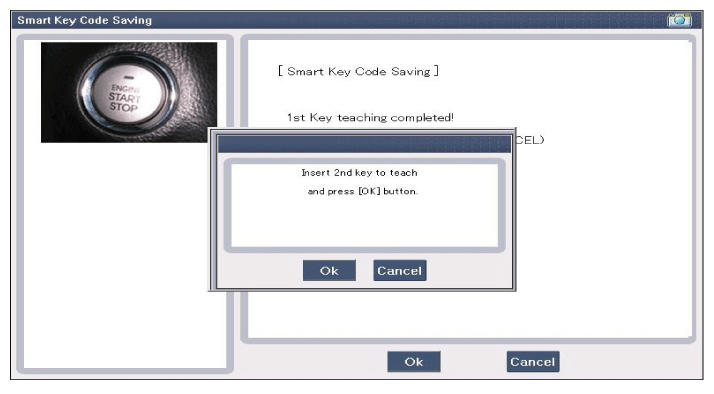

Fig 9: Display - Insert Second Key To Teach Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second Key Teaching Completed".

Fig 10: Display - Second Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

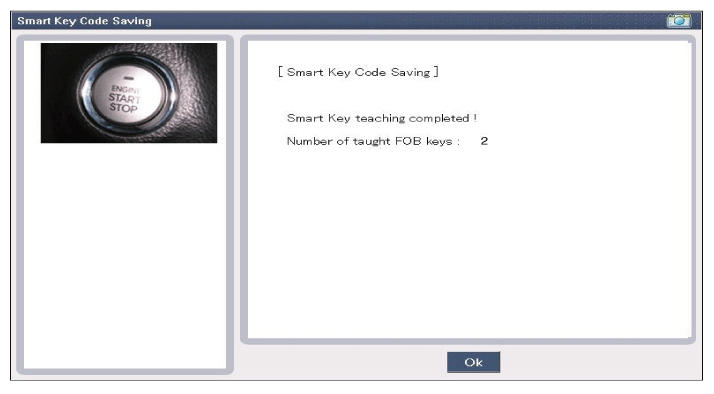

Then the screen will be displayed in graphic when key teaching process is completed.
