Driver Power Window Switch

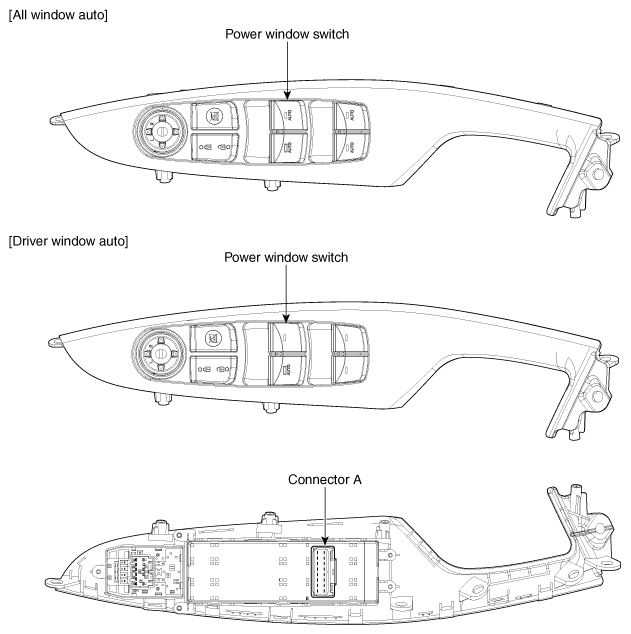

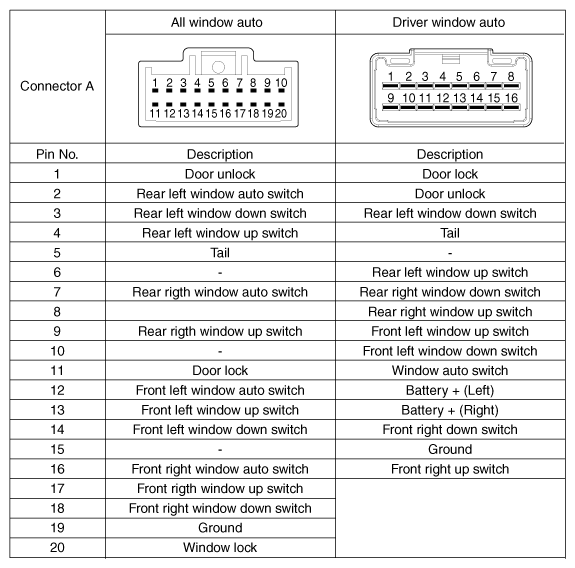

Fig 1: Identifying Driver Power Window Switch (All Window Switch)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Identifying Driver Power Window Switch (Driver Window Auto)

Courtesy of HYUNDAI MOTOR AMERICA

[All Window Auto]

Fig 3: Power Window Switch - Circuit Diagram (All Window Auto)

Courtesy of HYUNDAI MOTOR AMERICA

[Driver Window Auto]

Fig 4: Power Window Switch - Circuit Diagram (Driver Window Auto)

Courtesy of HYUNDAI MOTOR AMERICA
