Schematic Diagrams
›
Passenger/Rear Power Window Switch
Passenger/Rear Power Window Switch

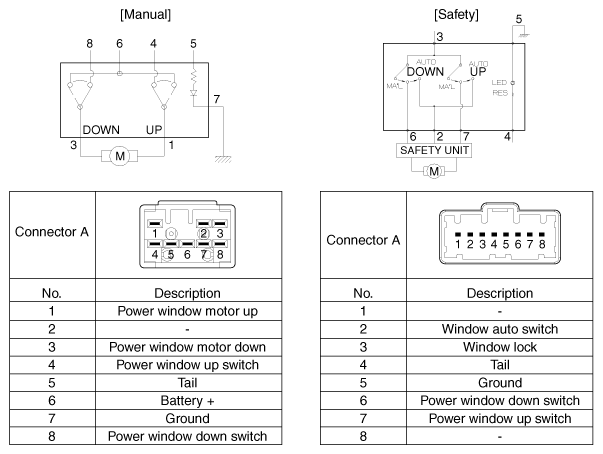

Fig 1: Power Window Switch - Circuit Diagram (Passenger/Rear Power Window Switch)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
