Home › Hyundai › 2015 › Elantra GT Automatic Trans › Repair and Diagnosis › Transmission › Clutch System › Clutch Cover And Disc › Components and Components Location › Components

Components and Components Location: Components

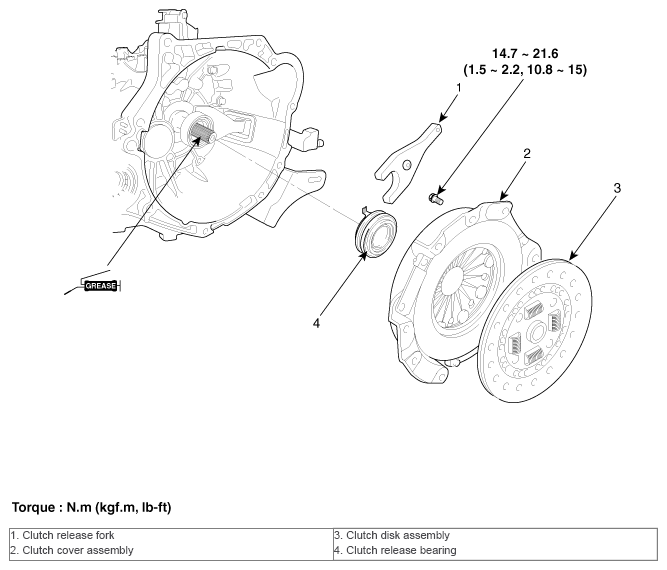

Fig 1: Clutch Cover And Disc Components Location With Torque Specification
G10750026Courtesy of HYUNDAI MOTOR AMERICA
