Components and Components Location: Components

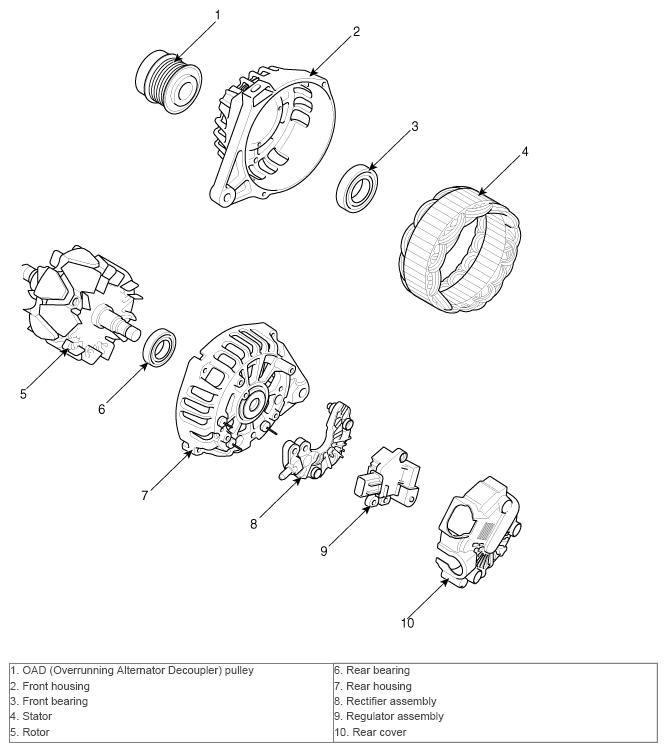

Fig 1: Exploded View Of Alternator
G10749696Courtesy of HYUNDAI MOTOR AMERICA
