■ CLU Variant Coding Method and Procedure (Off-Line Type on GDS)

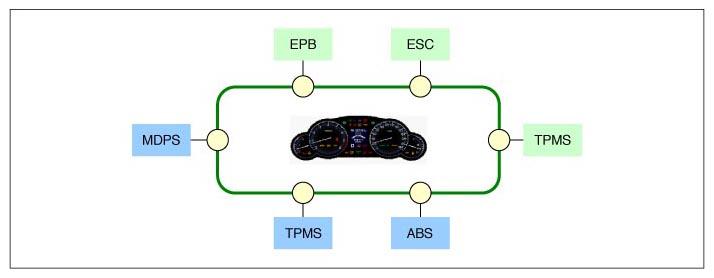

Fig 1: Identifying CLU Variant Coding Method (OFF-Line Type On GDS)

G10753026

Courtesy of HYUNDAI MOTOR AMERICA

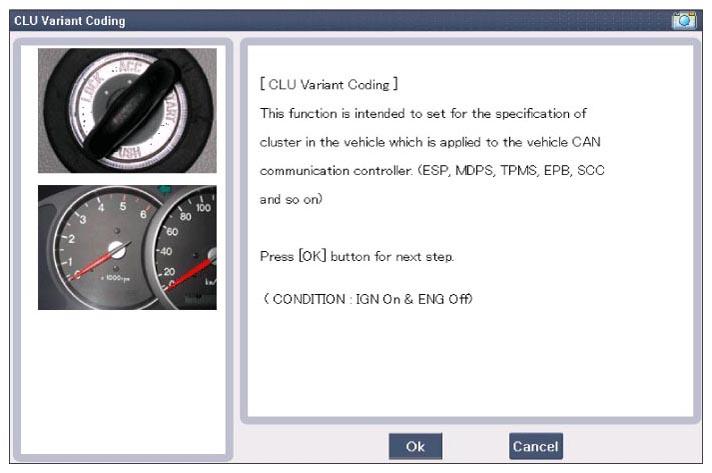

Fig 2: Screen Display - CLU Variant Coding Proceeding-1

G10753027

Courtesy of HYUNDAI MOTOR AMERICA

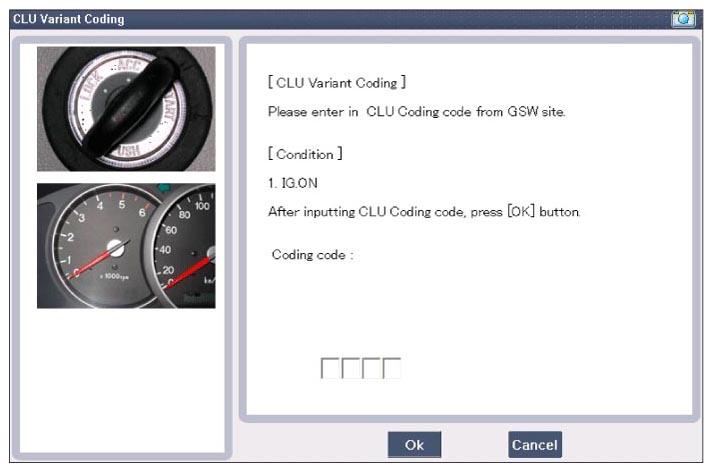

Fig 3: Screen Display - CLU Variant Coding Proceeding-2

G10753028

Courtesy of HYUNDAI MOTOR AMERICA

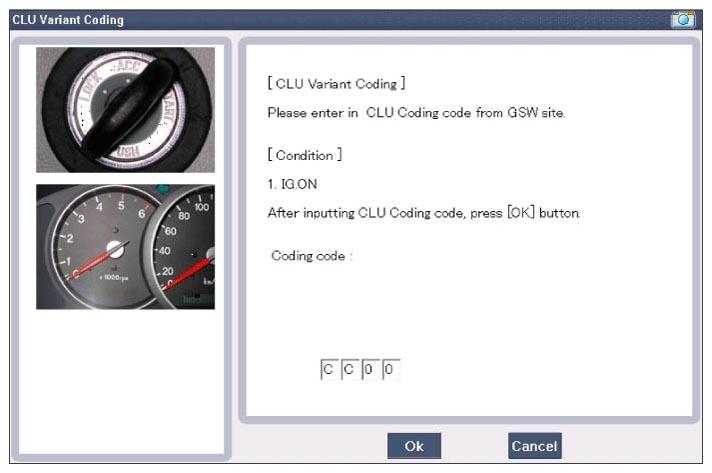

Fig 4: Screen Display - CLU Variant Coding Proceeding-3

G10753029

Courtesy of HYUNDAI MOTOR AMERICA

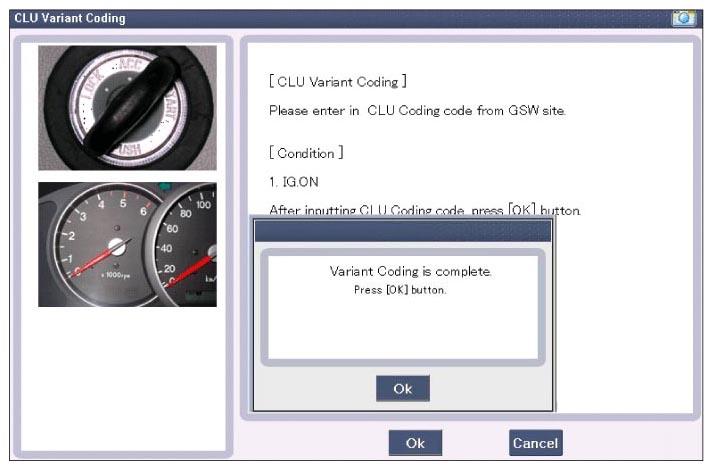

Fig 5: Screen Display - CLU Variant Coding Completed

G10753030

Courtesy of HYUNDAI MOTOR AMERICA

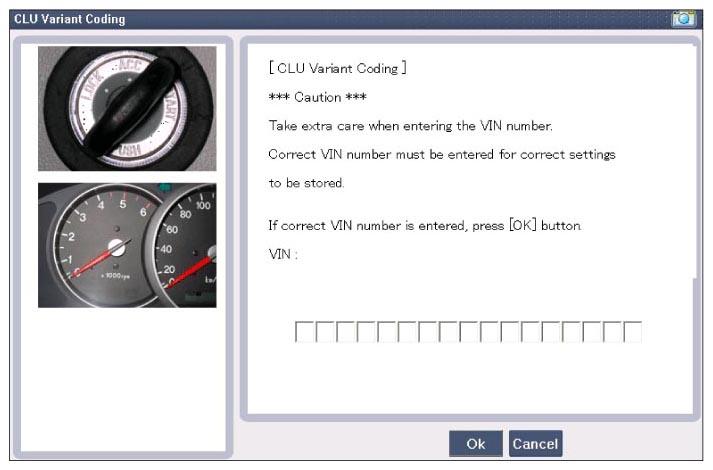

Fig 6: Screen Display - CLU Variant Coding Proceeding-1

G10753031

Courtesy of HYUNDAI MOTOR AMERICA

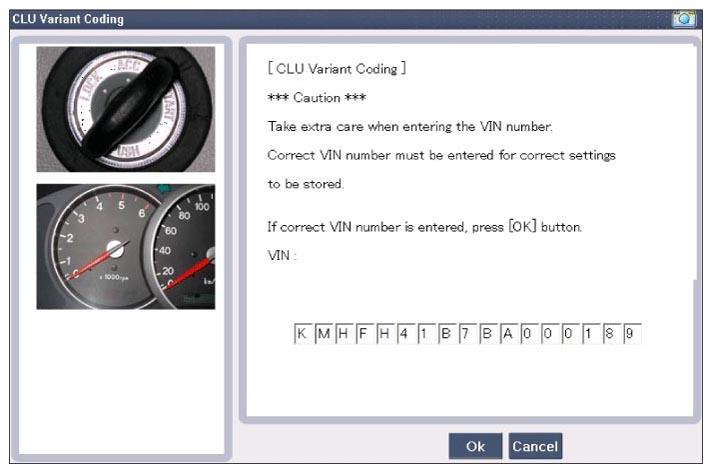

Fig 7: Screen Display - CLU Variant Coding Proceeding-2

G10753032

Courtesy of HYUNDAI MOTOR AMERICA

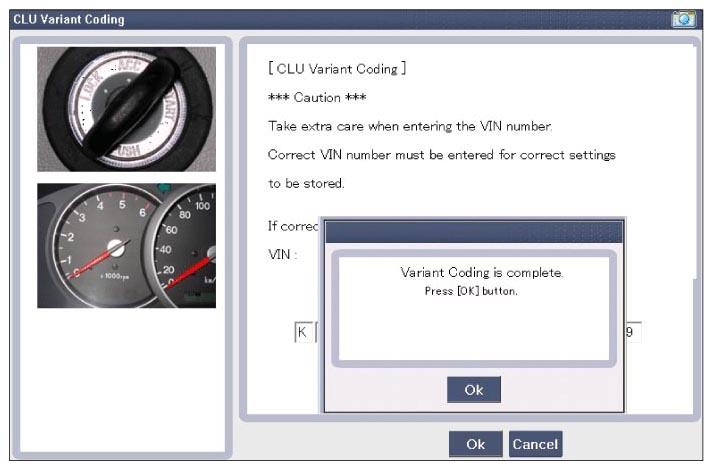

Fig 8: Screen Display - CLU Variant Coding Completed

G10753033

Courtesy of HYUNDAI MOTOR AMERICA
