Components and Components Location: Components

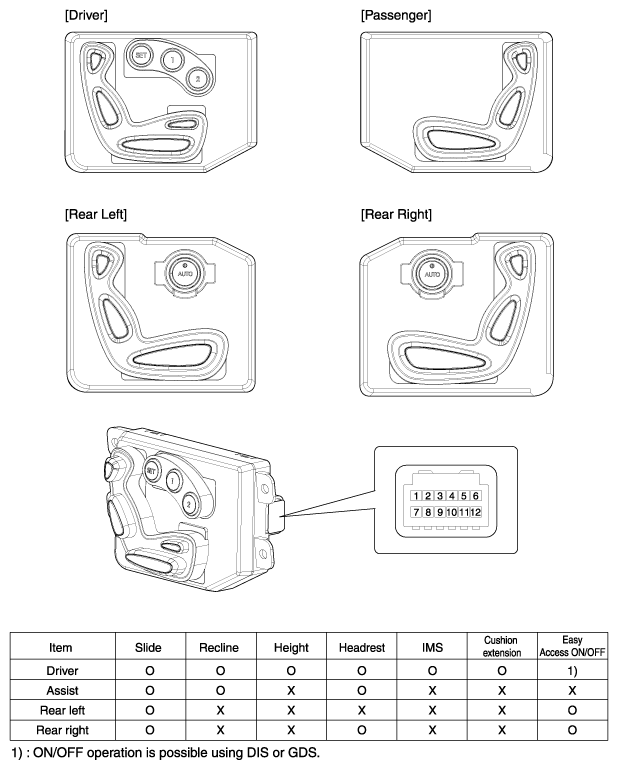

Fig 1: Memory Power Seat Switch Components And Connector Terminal Identification
G10387072Courtesy of HYUNDAI MOTOR AMERICA
