Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

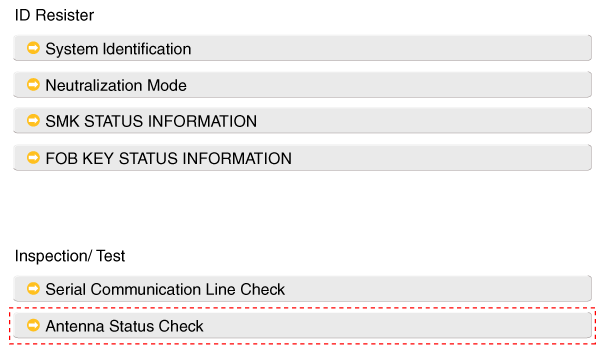

    Fig 1: Display - Antenna Status Check Screen
    G10386998Courtesy of HYUNDAI MOTOR AMERICA
  3. After IG ON, select the "Antenna Status Check".

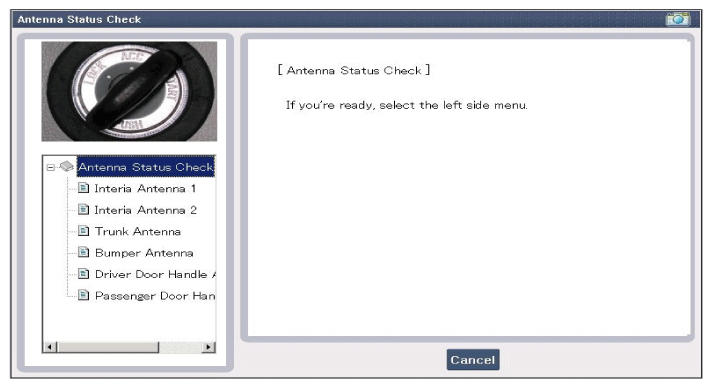

    Fig 2: Display - Antenna Status Check Screen
    G10386999Courtesy of HYUNDAI MOTOR AMERICA
  4. Set the smart key near the related antenna and operate it with a GDS.

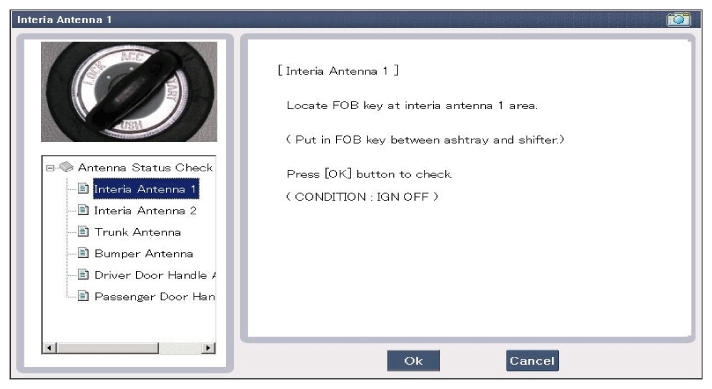

    Fig 3: Display - Antenna Status Check Screen
    G10387000Courtesy of HYUNDAI MOTOR AMERICA

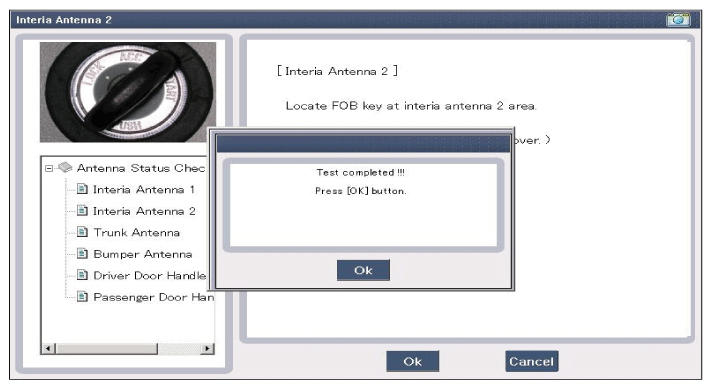

    Fig 4: Display - Antenna Status Check Message Screen
    G10387001Courtesy of HYUNDAI MOTOR AMERICA
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. INTERIOR Antenna 3
    4. Trunk antenna
    5. BUMPER/Antenna
    6. DRV_DR Antenna
    7. AST_DR Antenna
