Signal Waveform & Data

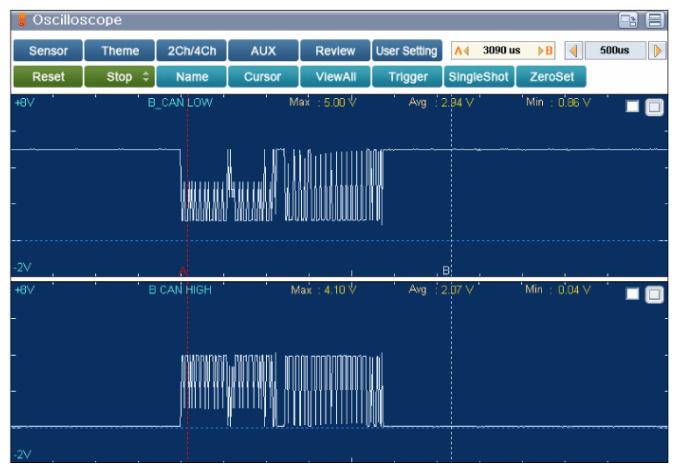

Fig 1: Display - B CAN Low And High Signal Waveform
G10393878Courtesy of HYUNDAI MOTOR AMERICA
