Signal Waveform & Data

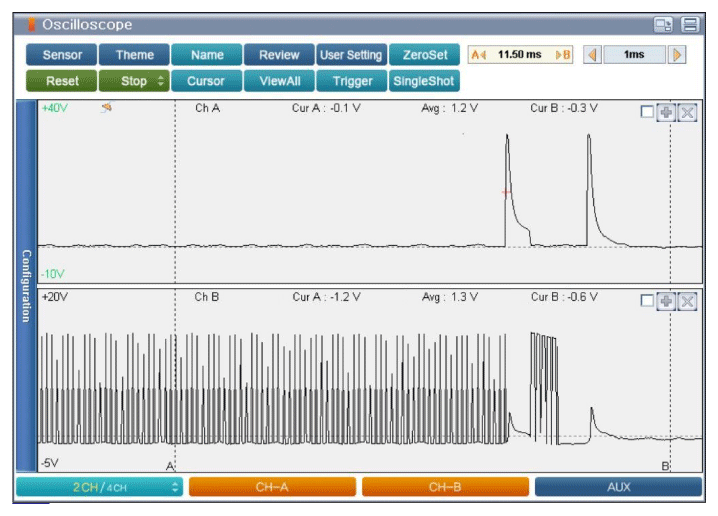

Fig 1: Scantool Display - Normal Waveform Of FPR (B2) At Idle
G10391471Courtesy of HYUNDAI MOTOR AMERICA

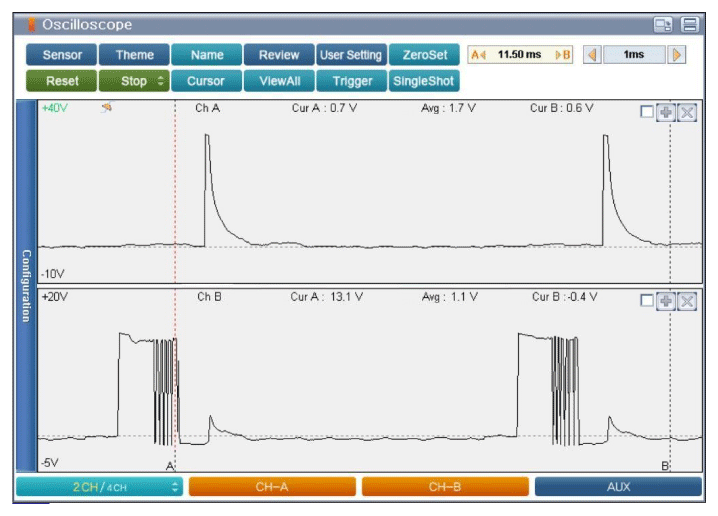

Fig 2: Scantool Display - Normal Waveform Of FPR (B2) Parameter At Acceleration And Deceleration
G10391472Courtesy of HYUNDAI MOTOR AMERICA
