Components and Components Location: Components

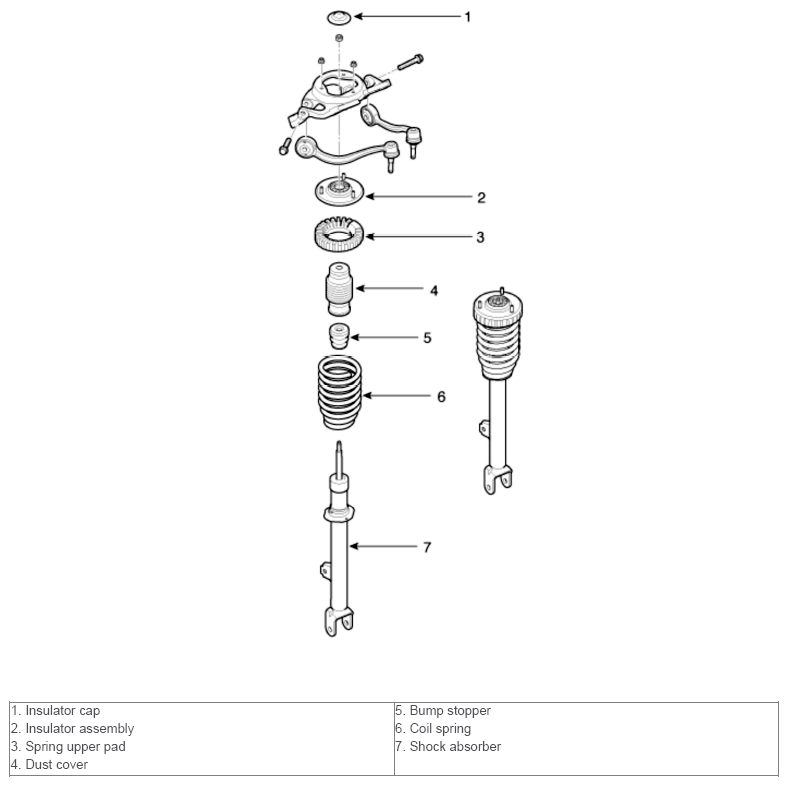

Fig 1: Front Air Strut Assembly Components (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

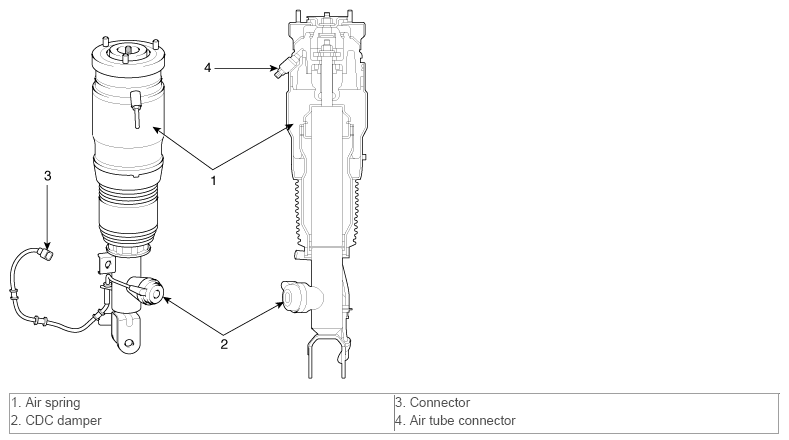

Fig 2: Front Air Strut Assembly Components (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
