Automatic Transmission Control System
›
8LR Brake Control Solenoid Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

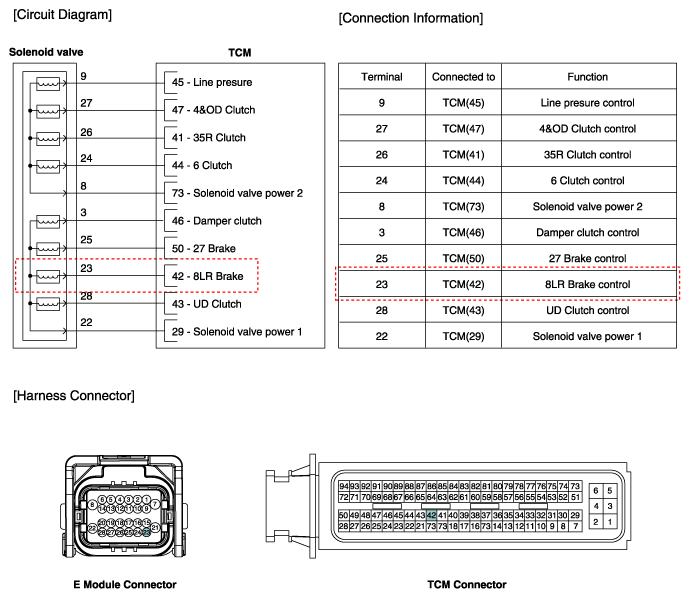

Fig 1: 8LR Brake Control Solenoid Valve Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
