Circuit Diagram

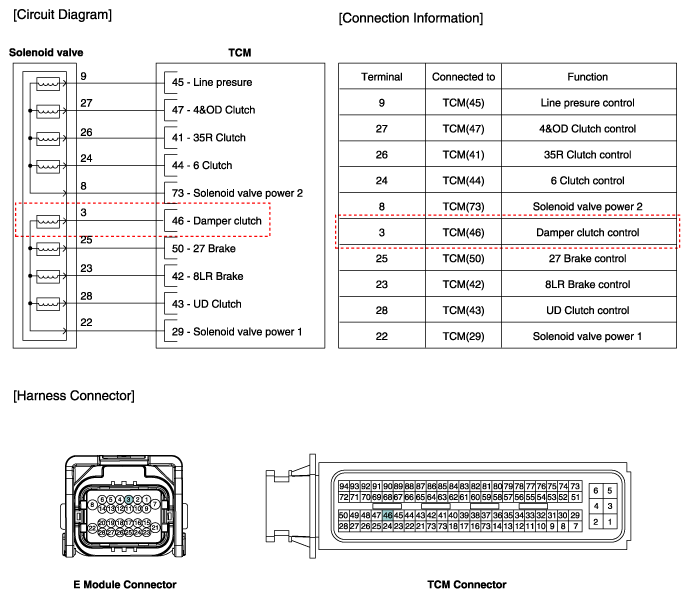

Fig 1: Damper Clutch Control Solenoid Valve Circuit Diagram And Connector Terminal Identification
G10382907Courtesy of HYUNDAI MOTOR AMERICA
