Home › Hyundai › 2015 › Equus Ultimate › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › Components and Components Location › Components

Components and Components Location: Components

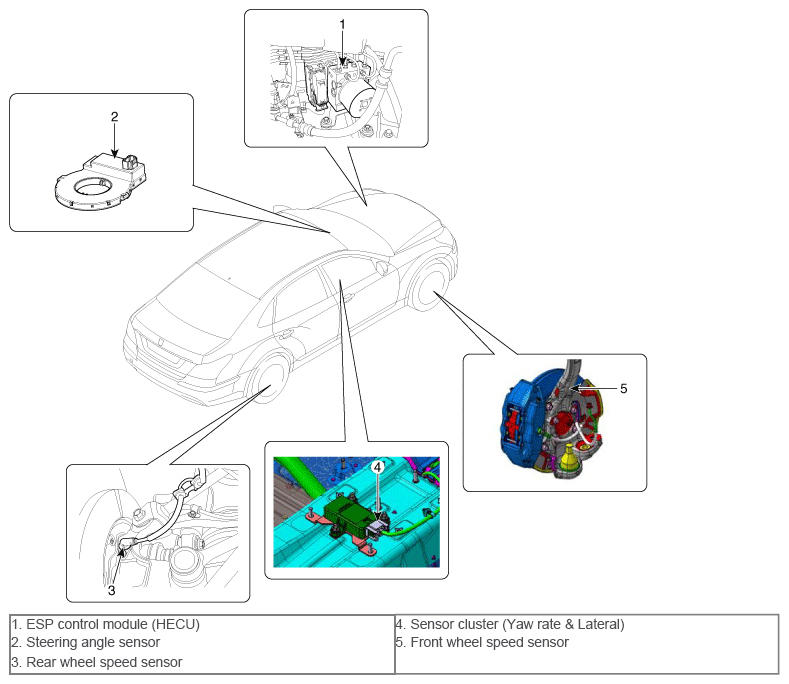

Fig 1: Electronic Stability Control System Component Locations
G10383547Courtesy of HYUNDAI MOTOR AMERICA
