Home › Hyundai › 2015 › Equus Ultimate › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › ESP Control Unit › Components and Components Location › Components › [Premium]

Components and Components Location: Components: [Premium]

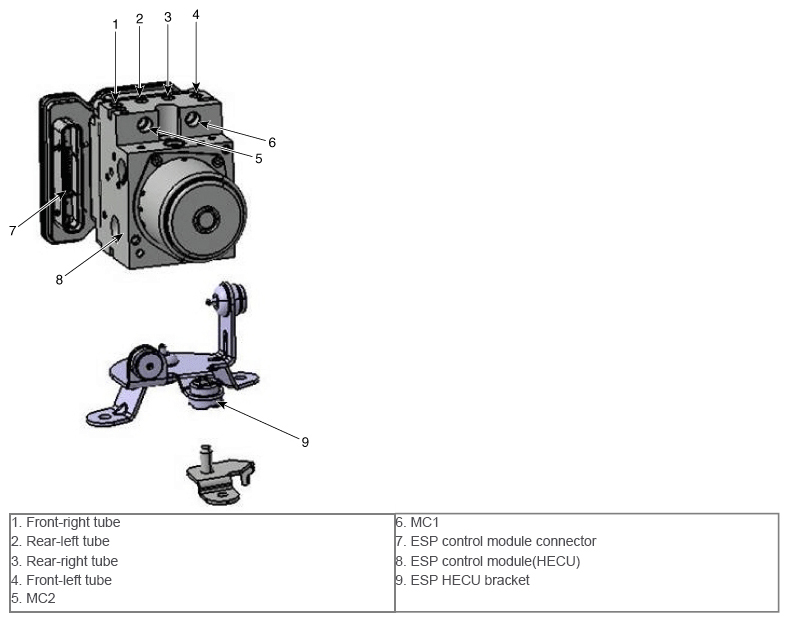

Fig 1: Electronic Stability Program (ESP) Control Unit Components
G10383587Courtesy of HYUNDAI MOTOR AMERICA
