Home › Hyundai › 2015 › Equus Ultimate › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › ESP Control Unit › Components and Components Location › Components › [Standard]

Components and Components Location: Components: [Standard]

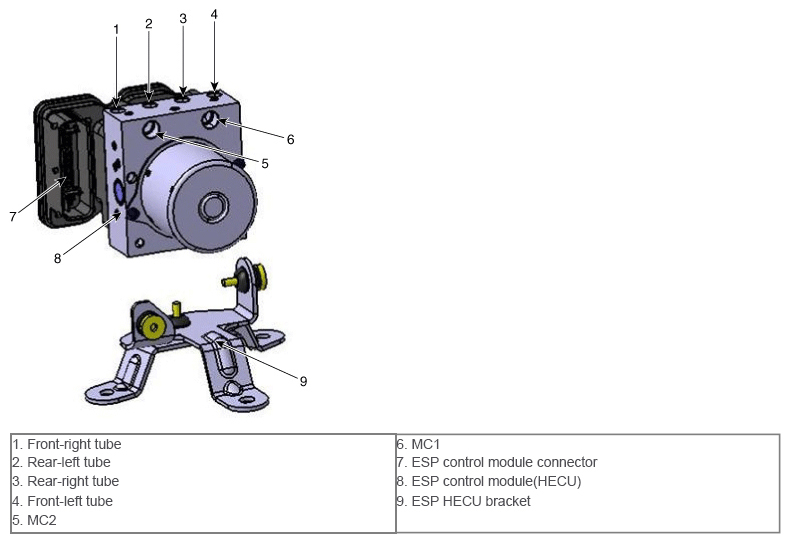

Fig 1: Electronic Stability Program (ESP) Control Unit Components
G10383586Courtesy of HYUNDAI MOTOR AMERICA
