Canister Close Valve (CCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

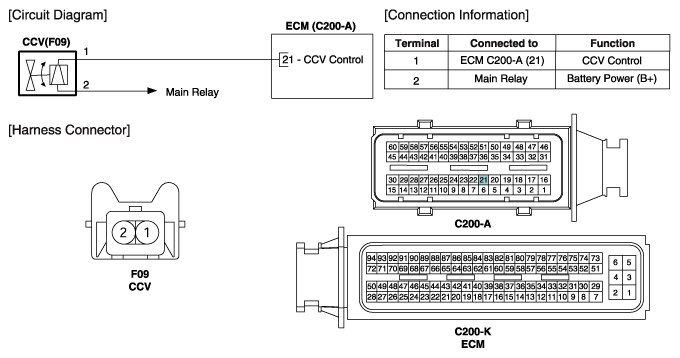

Fig 1: Canister Close Valve (CCV) Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
