Purge Control Solenoid Valve (PCSV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

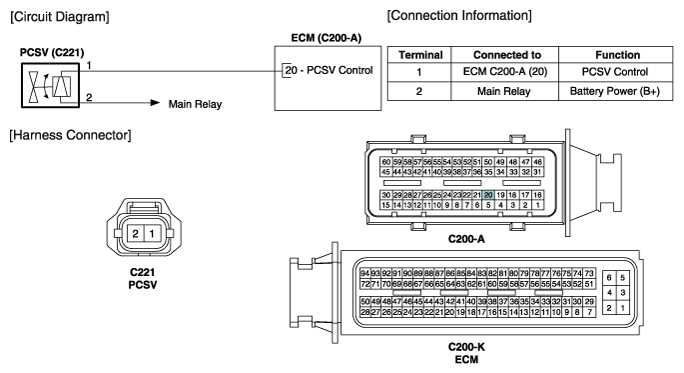

Fig 1: Purge Control Solenoid Valve (PCSV) Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
