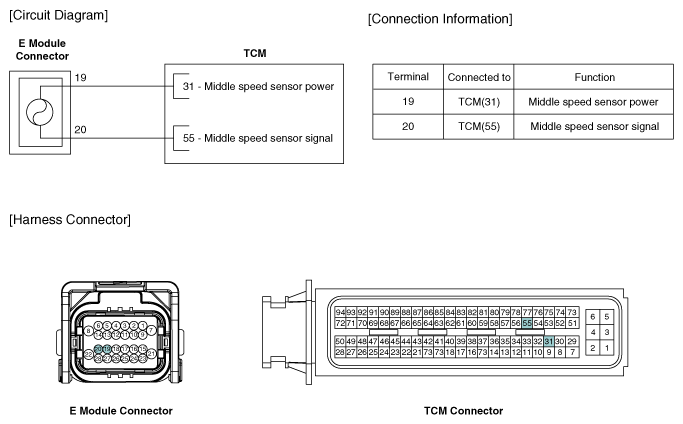

Home › Hyundai › 2015 › Genesis 3.8, AWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transmission Control System › Middle Speed Sensor › Schematic Diagrams › Circuit Diagram
