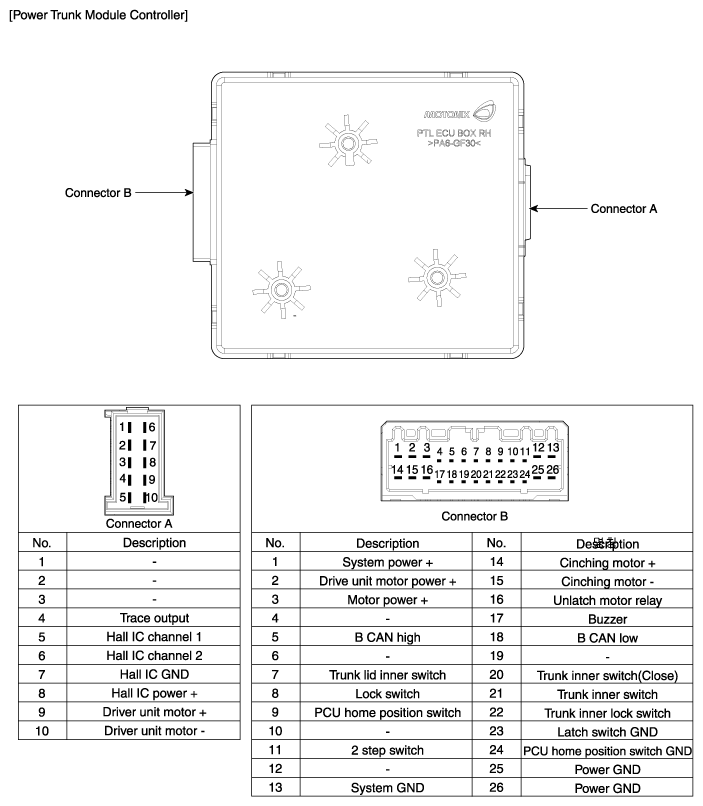

Home › Hyundai › 2015 › Genesis 3.8, RWD › Repair and Diagnosis › Accessories & Equipment › Communication Devices › Power Trunk Module › Power Trunk Module Drive Unit › Schematic Diagrams › Circuit Diagram
